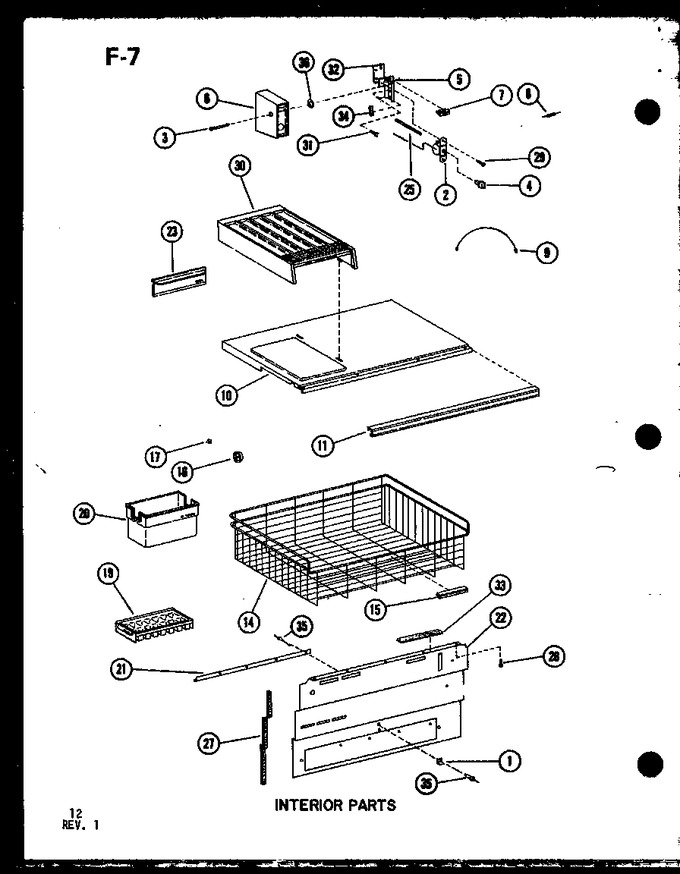

01 - Interior Parts
02 - Page 2
03 - Page 3
04 - Page 5
05 - Page 6
06 - Page 7
07 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5763301 | Support |
|
- | |||||
| 2 | C3615014 | Control |
|
- | |||||
| 3 | M0230926 | Screw |
|
- | |||||
| 4 | D7009801 | Knob |
|
- | |||||
| 5 | C8850501 | Bracket |
|
- | |||||
| 6 | D7278007 | Escutcheon |
|
- | |||||
| 7 | M0341202 | Switch |
|
- | |||||
| 8 | M0305301 | Diode |
|
- | |||||
| 9 | A3221101 | Wire-jumper |
|
- | |||||
| 10 | C8841904 | Shelf Frz. Pnt. |
|
- | |||||
| 11 | C8832502 | Trim-shelf |
|
- | |||||
| 14 | D7297701 | Basket-fr |
|
- | |||||
| 15 | B0571806 | Handle Basket |
|
- | |||||
| 16 | B5636301 | Cap |
|
- | |||||
| 17 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 19 | WP841180A | Tray, Ice (Replaces: C8717801) |
|
Immediately | $ 47.84 | ||||
| 20 | D7442301 | Ice Container |
|
- | |||||
| 21 | B5763201 | Ht Cond-evap |
|
- | |||||
| 22 | D7382501 | Cover-evap |
|
- | |||||
| 23 | C8847604 | Door Ice Tunnel K |
|
- | |||||
| 25 | B5636608 | Cover-cap Tube |
|
- | |||||
| 27 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 28 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 29 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 30 | D7552901 | Tunnel Ice Tray K |
|
- | |||||
| 31 | M0010202 | Rivet A |
|
- | |||||
| 32 | B5768901 | Barrier-foil |
|
- | |||||
| 33 | A3030301 | Gasket (inch) |
|
- | |||||
| 34 | A3030335 | Gasket-per Ft |
|
- | |||||
| 35 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 14.16 | |||||
| 36 | M0270509 | Washer |
|
- |
