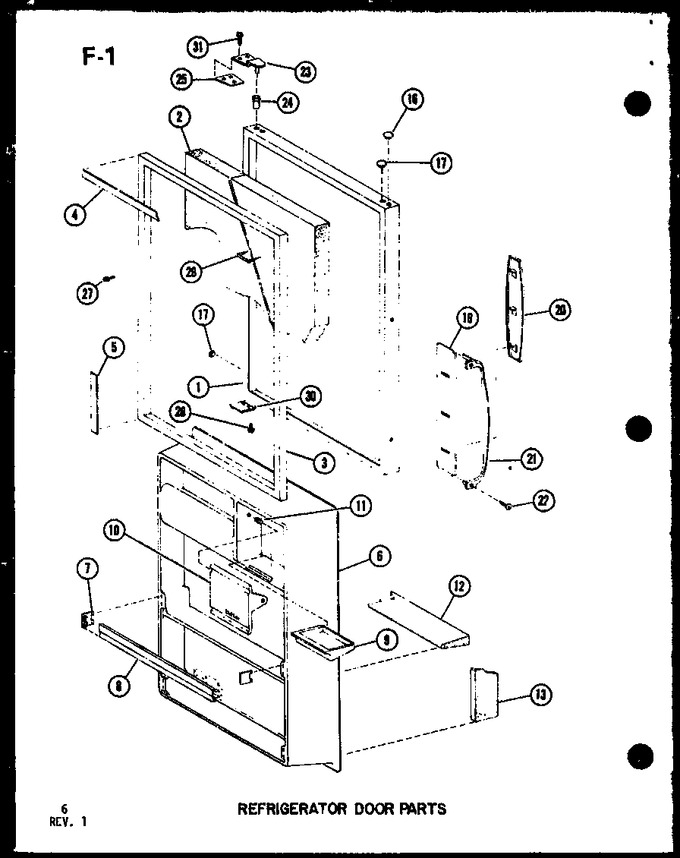

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8806820 | Door Ref-l-t-esbfc16c |
|
- | |||||
| 1 | C8806816 | Door Ref W-t-esbfc16c |
|
- | |||||
| 1 | C8806817 | Door-ref C-t-esbfc16c |
|
- | |||||
| 1 | C8806818 | Door Ref Av-t-esbfc16c |
|
- | |||||
| 1 | C8806819 | Door-ref G-t-esbfc16c |
|
- | |||||
| 2 | D7304601 | Foam Slab-fr Door |
|
- | |||||
| 3 | D7431911 | Gasket |
|
- | |||||
| 4 | D3928118 | Retainer-gasket |
|
- | |||||
| 5 | D3928119 | Retainer-gasket |
|
- | |||||
| 6 | D7296502 | Inner Dr Panel |
|
- | |||||
| 7 | C8774404 | Support-retainer Lh |
|
- | |||||
| 7 | C8774403 | Support-retainer Rh |
|
- | |||||
| 8 | D7415710 | Retainer |
|
- | |||||
| 9 | D3799801 | Butter Tray |
|
- | |||||
| 10 | D7417701 | Butter Door |
|
- | |||||
| 11 | A3084701 | Pivot |
|
- | |||||
| 12 | B5629037 | Insulation |
|
- | |||||
| 13 | B0523563 | Insulation Ft. K |
|
- | |||||
| 16 | M0310601 | Plug |
|
- | |||||
| 16 | M0310607 | Plug |
|
- | |||||
| 16 | M0310608 | Plug |
|
- | |||||
| 16 | M0310606 | Plug |
|
- | |||||
| 16 | M0310609 | Plug |
|
- | |||||
| 17 | M0310717 | Plug |
|
- | |||||
| 17 | M0310725 | Plug |
|
- | |||||
| 17 | M0310719 | Plug |
|
- | |||||
| 17 | M0310715 | Plug |
|
- | |||||
| 17 | WP67001130 | Plug (Replaces: M0310705) |
|
Immediately | $ 5.98 | ||||
| 19 | D7415002 | Pad, Handle |
|
- | |||||
| 20 | B8301604 | Nameplate Handle |
|
- | |||||
| 21 | D7159501 | Handle |
|
- | |||||
| 22 | M0207431 | Screw |
|
- | |||||
| 23 | B5744302 | Hinge, Top |
|
- | |||||
| 24 | C3652901 | Bushing, Hinge Pin |
|
- | |||||
| 25 | A3270303 | Shim Kit |
|
- | |||||
| 25 | A3270302 | Shim-top Hinge K |
|
- | |||||
| 25 | A3270301 | Shim, Top Hinge |
|
- | |||||
| 27 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 28 | M0205631 | Machine Screw |
|
- | |||||
| 29 | A3195601 | Clamp-wiring |
|
- | |||||
| 30 | C8894801 | Door Stop |
|
- | |||||
| 31 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 |
