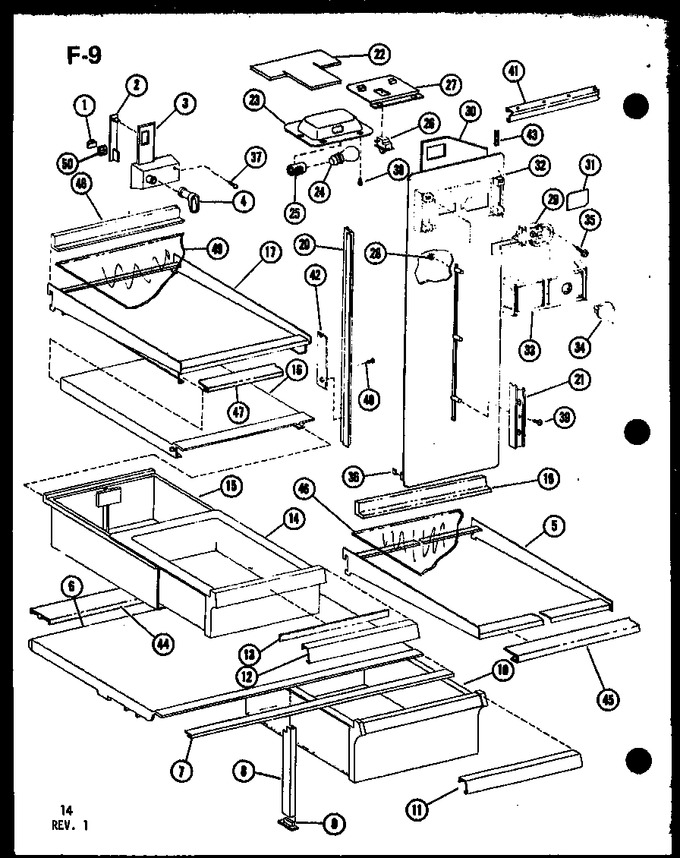

01 - Interior Parts
02 - Page 2
03 - Page 3
04 - Page 5
05 - Page 6
06 - Page 7
07 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0117701 | Clip |
|
- | |||||
| 2 | B5622804 | Slide-control |
|
- | |||||
| 3 | D7273104 | Escut Meat Keeper |
|
- | |||||
| 4 | C8743003 | Grommet-mt Kpr |
|
- | |||||
| 5 | D7421001 | Frame |
|
- | |||||
| 5 | D7421003 | Frame-cant |
|
- | |||||
| 6 | D7261308 | Crisper Top |
|
- | |||||
| 7 | B0570905 | Trim-crisper Top |
|
- | |||||
| 8 | B0571007 | Post-crisper Top |
|
- | |||||
| 9 | B0571201 | Support |
|
- | |||||
| 10 | D7425601 | Pan, Crisper |
|
- | |||||
| 11 | C8831703 | Trim-cr Handle |
|
- | |||||
| 12 | C8831704 | Trim-handle A |
|
- | |||||
| 13 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 14 | D7425301 | Pan, Meat Keeper |
|
- | |||||
| 15 | D7001304 | Sleeve, Meat Keeper |
|
- | |||||
| 16 | D7343603 | Top-mt Kpr |
|
- | |||||
| 17 | D7420801 | Frame-cant Mkr |
|
- | |||||
| 19 | D7415104 | Trim-rear |
|
- | |||||
| 19 | D7415106 | Trim-back Cntlvr |
|
- | |||||
| 20 | C8768702 | Ladder-side |
|
- | |||||
| 20 | C8768701 | Ladder-side |
|
- | |||||
| 21 | C8768801 | Ladder-center |
|
- | |||||
| 22 | C8778301 | Insulation |
|
- | |||||
| 23 | D7340301 | Light Hsg |
|
- | |||||
| 24 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 25 | C3642301 | Socket Lamp |
|
- | |||||
| 26 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 27 | D7297601 | Cover |
|
- | |||||
| 28 | M0118902 | Clip-push On |
|
- | |||||
| 29 | C8761104 | Control Damper |
|
- | |||||
| 30 | D7311102 | Insulation-duct |
|
- | |||||
| 31 | B5756502 | Insulation |
|
- | |||||
| 32 | D7438303 | Cover, Air Duct |
|
- | |||||
| 33 | D7561401 | Air Deflector |
|
- | |||||
| 34 | D7009802 | Knob |
|
- | |||||
| 35 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 36 | M0117701 | Clip |
|
- | |||||
| 38 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 39 | M0230926 | Screw |
|
- | |||||
| 40 | M0231117 | Screw |
|
- | |||||
| 41 | D7288102 | Shield Light |
|
- | |||||
| 42 | D7308202 | Supt-drip Tray |
|
- | |||||
| 42 | C8792902 | Plate |
|
- | |||||
| 42 | C8792901 | Plate |
|
- | |||||
| 43 | A3030305 | Gasket-per Ft |
|
- | |||||
| 44 | D7341302 | Extension |
|
- | |||||
| 45 | C8835403 | Trim-shelf |
|
- | |||||
| 45 | C8835405 | Trim-front Shelf |
|
- | |||||
| 46 | D7421207 | Glass Shelf |
|
- | |||||
| 46 | D7421206 | Glass Shelf |
|
- | |||||
| 47 | C8835404 | Trim-front Shelf |
|
- | |||||
| 48 | D7415105 | Trim-back Cntlvr |
|
- | |||||
| 49 | D7421205 | Glass Shelf |
|
- | |||||
| 50 | B5770901 | Gasket-mtkpr |
|
- |
