SELECT A DIAGRAM

01 - Compressor Parts (esr)

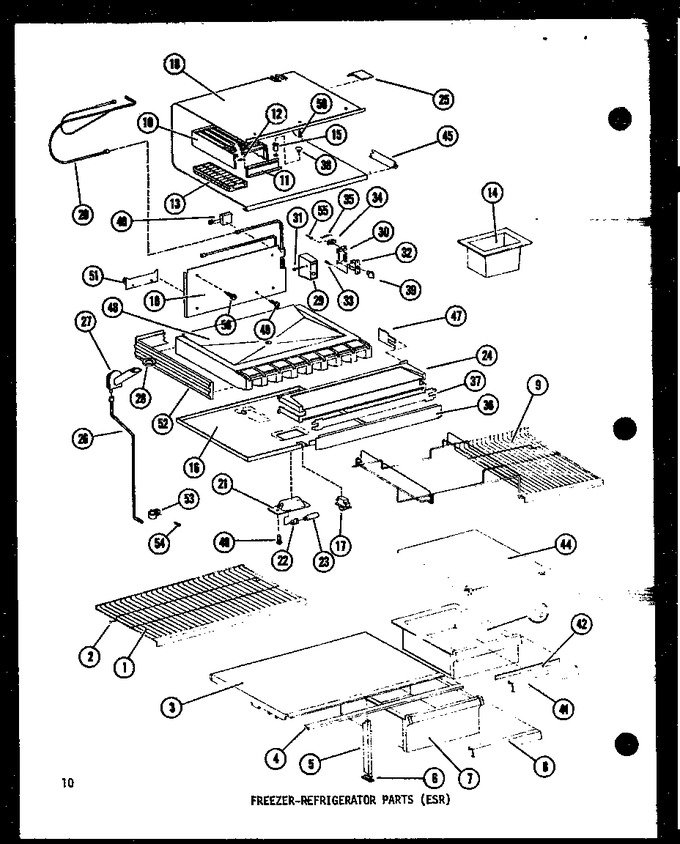

02 - Fz-ref Parts (esr)


03 - Lower Door Parts (esr)


04 - Upper Door Parts (esr)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7256605		Shelf, Glide Out		Appelez-nous	-
2	B5753502		Cap		Appelez-nous	-
2	B5753501		Cap		Appelez-nous	-
3	D7261303		Crisper Top		Appelez-nous	-
4	B0570905		Trim-crisper Top		Appelez-nous	-
5	B0571002		Support		Appelez-nous	-
6	B5749401		Support Post		Appelez-nous	-
7	D7261805		Pan, Crisper		Appelez-nous	-
8	C3696504		Trim-crisper Handle		Appelez-nous	-
9	D7276303		Shelf, Step, Meat Keeper		Appelez-nous	-
10	D7193005		Tunnel-ice Tray		Appelez-nous	-
11	C8706101		Door, Tunnel		Appelez-nous	-
12	A3214701		Hinge Pin		Appelez-nous	-
13	WP841180A		Tray, Ice   (Replaces: C8717801)			Immediately	$ 47.84
14	D7272701		Ice Container		Appelez-nous	-
15	C8756901		Drain Tube		Appelez-nous	-
16	D7272802		Top Shelf		Appelez-nous	-
17	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
18	R0170009		Evap Assy		Appelez-nous	-
20	D7278102		Heat Ex		Appelez-nous	-
21	C8730101		Shield, Light		Appelez-nous	-
22	C8708801		Socket-light		Appelez-nous	-
23	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
24	D7276501		Breaker-mullion		Appelez-nous	-
25	C8759301		Cover Plate		Appelez-nous	-
26	C8756901		Drain Tube		Appelez-nous	-
27	C3630903		Elbow		Appelez-nous	-
28	A3132301		Gasket		Appelez-nous	-
29	D7278004		Escutcheon		Appelez-nous	-
30	C8702602		Bracket, Control		Appelez-nous	-
31	M0230926		Screw		Appelez-nous	-
32	C3615010		Control, Temperature		Appelez-nous	-
33	A3012520		Plastic Tubing		Appelez-nous	-
34	M0341202		Switch		Appelez-nous	-
35	M0305301		Diode		Appelez-nous	-
36	C8770914		Ctr Mullion Ag		Appelez-nous	-
36	C8770908		Ctr Mullion W		Appelez-nous	-
36	C8770913		Ctr Mullion Av		Appelez-nous	-
36	C8770915		Ctr Mullion C		Appelez-nous	-
36	C8770912		Ctr Mullion Al		Appelez-nous	-
37	C8777701		Center Heater Kit		Appelez-nous	-
38	B5721101		Drain Plug		Appelez-nous	-
39	D7009801		Knob		Appelez-nous	-
40	C8769101		Heater-ref Evap A		Appelez-nous	-
41	C3623002		Trim, Handle		Appelez-nous	-
42	A3030313		Gasket (per Foot)		Appelez-nous	-
43	D3975703		Pan, Meat Keeper		Appelez-nous	-
44	D7001104		Top, Meat Keeper		Appelez-nous	-
45	C8758705		Gasket-evap		Appelez-nous	-
45	C8758702		Gasket-evap		Appelez-nous	-
47	B5762802		Gasket Rh Mullion K		Appelez-nous	-
47	B5762801		Gasket Lh Mullion K		Appelez-nous	-
48	D7277502		Insulation Block		Appelez-nous	-
49	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38
50	M0236721		Screw K		Appelez-nous	-
51	B5754001		Clamp, Control Bulb		Appelez-nous	-
52	B5757801		Gasket K		Appelez-nous	-
53	M0102303		Clamp		Appelez-nous	-
54	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
55	M0010202		Rivet A		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
