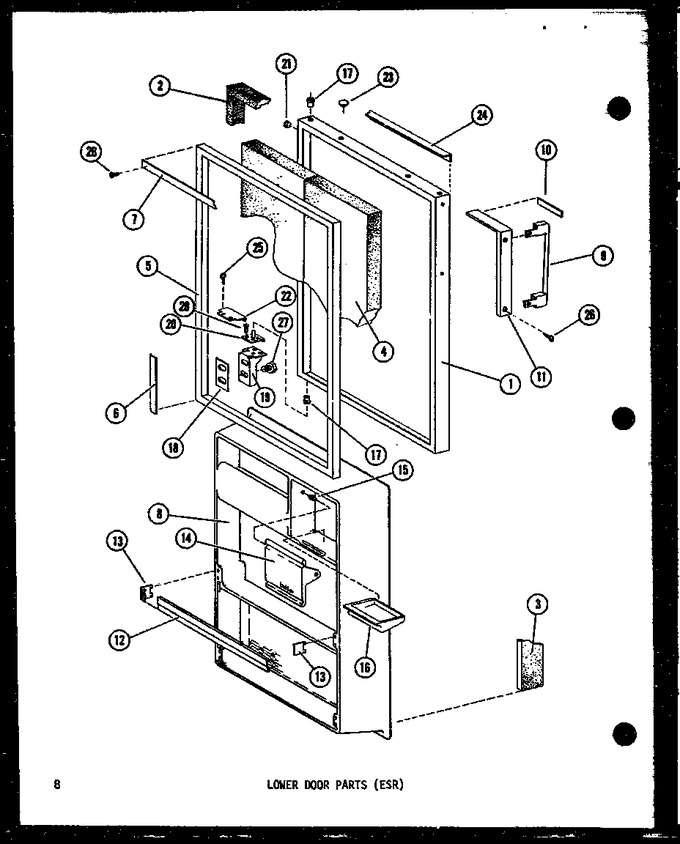

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7274969		Lower Door Weldment, Avocado		Appelez-nous	-
1	D7274982		Lower Door Weldment, Copperton		Appelez-nous	-
1	D7274937		Door Ref-l-p-esrfc514		Appelez-nous	-
1	D7274905		Lower Door Weldment, White		Appelez-nous	-
1	D7274970		Door Ref-c-p-esrfc514		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5629037		Insulation		Appelez-nous	-
4	D7293701		Foam Slab		Appelez-nous	-
5	D3928220		Gasket		Appelez-nous	-
6	D3928115		Retainer-gasket		Appelez-nous	-
7	D3928118		Retainer-gasket		Appelez-nous	-
8	D7263201		Panel, Door		Appelez-nous	-
9	D7254202		Handle		Appelez-nous	-
10	C8757301		Nameplate		Appelez-nous	-
11	D7257901		Handle Pad Kit		Appelez-nous	-
12	D3976726		Retainer		Appelez-nous	-
13	B5631703		Support White K		Appelez-nous	-
13	B5631704		Support White K		Appelez-nous	-
14	D7026403		Door-butter		Appelez-nous	-
15	A3084701		Pivot		Appelez-nous	-
16	D3799801		Butter Tray		Appelez-nous	-
17	C3652901		Bushing, Hinge Pin		Appelez-nous	-
17	C3652902		Bushing		Appelez-nous	-
18	B5744803		Shim		Appelez-nous	-
18	B5744802		Shim		Appelez-nous	-
18	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
19	C8800301		Brkt-btm Hinge		Appelez-nous	-
20	B5640902		Hinge Kit		Appelez-nous	-
21	M0310715		Plug		Appelez-nous	-
21	M0310717		Plug		Appelez-nous	-
21	M0310719		Plug		Appelez-nous	-
21	M0310725		Plug		Appelez-nous	-
21	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 5.98
22	A3139801		Stop Door		Appelez-nous	-
23	M0310606		Plug		Appelez-nous	-
23	M0310603		Plug Button, Hinge Bushing Avo		Appelez-nous	-
23	M0310602		Plug		Appelez-nous	-
23	M0310601		Plug		Appelez-nous	-
23	M0310604		Plug Button, Hinge Bushing Aut		Appelez-nous	-
24	D7266501		Cap Door		Appelez-nous	-
25	M0205631		Machine Screw		Appelez-nous	-
26	M0222317		Screw		Appelez-nous	-
27	M0246159		Screw		Appelez-nous	-
28	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
29	M0205441		Screw K		Appelez-nous	-
