01 - Compressor Parts (esr)
02 - Fz-ref Parts (esr)
03 - Lower Door Parts (esr)

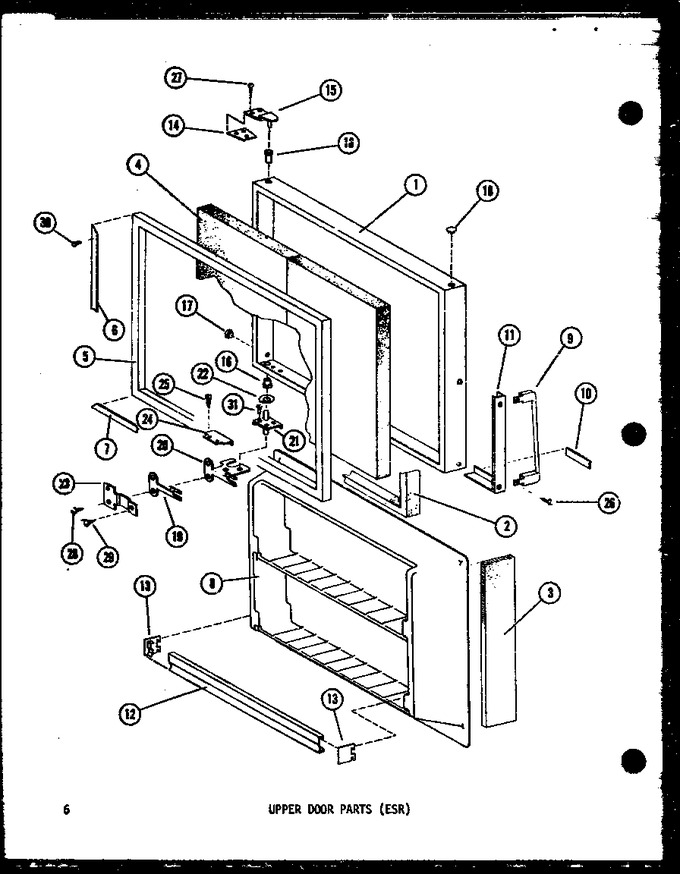

04 - Upper Door Parts (esr)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7274880 | Upper Door Weldment, Copperton |
|
- | |||||
| 1 | D7274934 | Door Fr-l-p-esr512 |
|
- | |||||
| 1 | D7274901 | Upper Door Weldment, White |
|
- | |||||
| 1 | D7274962 | Door Fr-g-p-esr512 |
|
- | |||||
| 1 | D7274861 | Upper Door Weldment, Avocado |
|
- | |||||
| 2 | B0523563 | Insulation Ft. K |
|
- | |||||
| 3 | B5629037 | Insulation |
|
- | |||||
| 4 | C8767001 | Foam Slab |
|
- | |||||
| 5 | D3928219 | Gasket |
|
- | |||||
| 6 | D3928114 | Retainer-gasket |
|
- | |||||
| 7 | D3928118 | Retainer-gasket |
|
- | |||||
| 8 | D7263101 | Inner Dr Panel |
|
- | |||||
| 9 | D7254201 | Handle |
|
- | |||||
| 10 | C8757303 | Nameplate |
|
- | |||||
| 11 | D7257902 | Handle Pad Kit |
|
- | |||||
| 12 | D3976727 | Retainer-package |
|
- | |||||
| 13 | C3680904 | Support K |
|
- | |||||
| 13 | C3680903 | Support K |
|
- | |||||
| 14 | A3270302 | Shim-top Hinge K |
|
- | |||||
| 14 | A3270301 | Shim, Top Hinge |
|
- | |||||
| 14 | A3270303 | Shim Kit |
|
- | |||||
| 15 | B5744301 | Hinge |
|
- | |||||
| 16 | C3652901 | Bushing, Hinge Pin |
|
- | |||||
| 16 | C3652902 | Bushing |
|
- | |||||
| 17 | M0310715 | Plug |
|
- | |||||
| 17 | M0310717 | Plug |
|
- | |||||
| 17 | WP67001130 | Plug (Replaces: M0310705) |
|
Immediately | $ 5.98 | ||||
| 17 | M0310725 | Plug |
|
- | |||||
| 17 | M0310719 | Plug |
|
- | |||||
| 18 | M0310607 | Plug |
|
- | |||||
| 18 | M0310608 | Plug |
|
- | |||||
| 18 | M0310609 | Plug |
|
- | |||||
| 18 | M0310606 | Plug |
|
- | |||||
| 18 | M0310601 | Plug |
|
- | |||||
| 19 | A3143501 | Shim K |
|
- | |||||
| 19 | A3143503 | Shim K |
|
- | |||||
| 19 | A3143502 | Shim K |
|
- | |||||
| 20 | C8800201 | Center Hinge Assy |
|
- | |||||
| 21 | B5750901 | Center Hinge Assy |
|
- | |||||
| 22 | A3145101 | Washer K |
|
- | |||||
| 23 | B5740902 | Kit, Tap Plate & Screw |
|
- | |||||
| 24 | A3139801 | Stop Door |
|
- | |||||
| 25 | M0205631 | Machine Screw |
|
- | |||||
| 26 | M0222317 | Screw |
|
- | |||||
| 27 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 28 | M0226831 | Screw |
|
- | |||||
| 29 | M0254231 | Screw |
|
- | |||||
| 30 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 31 | M0205441 | Screw K |
|
- |
