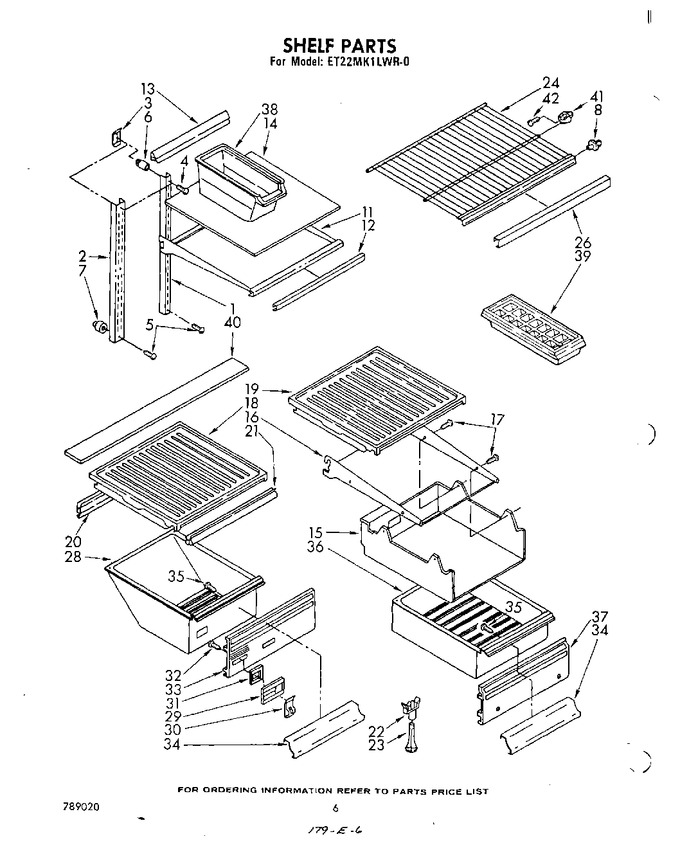

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	934267		Shelf, Ladder (2)		Appelez-nous	-
2	936230		Shelf, Ladder Center		Appelez-nous	-
3	983604		Screw Anchor		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 31.35
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
11	936381		Shelf, Cantilever		Appelez-nous	-
12	845610		Trim, Shelf		Appelez-nous	-
13	985083		Reflector, Cantilever		Appelez-nous	-
14	943041		Glass, Cantilever		Appelez-nous	-
15	942225		Meat, Pan Housing		Appelez-nous	-
16	942956		Cantilever, Pan Shelf		Appelez-nous	-
17	489085		Screw, 8-22 X 5/16 (4)		Appelez-nous	-
18	935122		Pan Slide & Cover		Appelez-nous	-
19	935125		Pan Slide & Cover (meat)		Appelez-nous	-
20	982158		Crisper Gasket, Rear		Appelez-nous	-
21	983114		Crisper Gasket, Front		Appelez-nous	-
22	848562		Support, Crisper Cover				$ 24.30
23	836410		Post, Cripser Cover				$ 5.84
24	935245		Shelf, Freezer		Appelez-nous	-
26	981454		Trim, Shelf Front		Appelez-nous	-
28	942248		Pan, Crisper		Appelez-nous	-
29	942234		Housing, Humidity Control		Appelez-nous	-
30	942235		Slide Control		Appelez-nous	-
31	942236		Seal, Control		Appelez-nous	-
32	489041		Screw, 6-19 X 7/16		Appelez-nous	-
33	1100354		Crisper, Front Cover (for Platinum Model Only)		Appelez-nous	-
33	942249		Crisper, Front Cover		Appelez-nous	-
34	984749		Overlay, Front Cover		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
35	488132		Screw (repair)		Appelez-nous	-
36	849020		Pan, Meat		Appelez-nous	-
37	943019		Front Cover, Meat		Appelez-nous	-
37	1101328		Meat, Front Cover (for Platinum Model Only)		Appelez-nous	-
38	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
39	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
40	935242		Crisper, Light Lens		Appelez-nous	-
41	836492		Shelf, Saddle		Appelez-nous	-
42	789020		List, Parts		Appelez-nous	-
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	799832		Kit, Porcelain Repair		Appelez-nous	-
42	946564		Tech Sheet		Appelez-nous	-
42	945951		Consumer Buy Guide		Appelez-nous	-
42	945952		Energy Guide		Appelez-nous	-
42	943059		Guide, Use & Care		Appelez-nous	-
42	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
42	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
42	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
42	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
42	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
42	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
42	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
42	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
42	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
42	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
42	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
42	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	876370		Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
42	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
42	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
42	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
42	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
