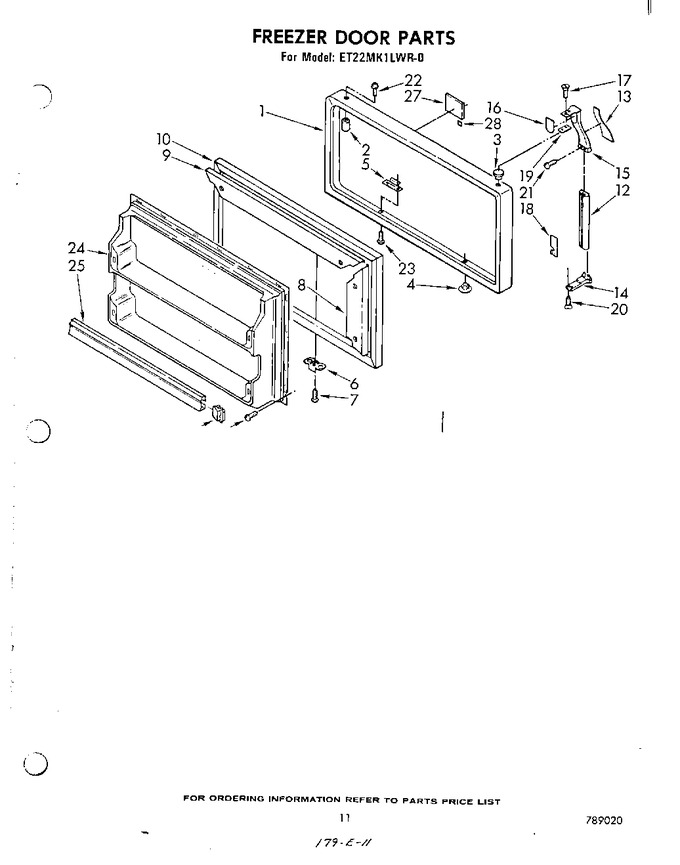

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101321		Freezer, Door Panel (platinum)		Appelez-nous	-
1	944183		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	944184		Freezer, Door Panel (new Avocado)		Appelez-nous	-
1	944185		Freezer, Door Panel (almond)		Appelez-nous	-
1	1101320		Freezer, Door Panel (toast)		Appelez-nous	-
1	944181		Freezer, Door Panel (white)		Appelez-nous	-
1	944182		Freezer, Door Panel (coffee)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	1100189		Hole Plug (platinum)		Appelez-nous	-
3	1100188		Hole Plug (toast)		Appelez-nous	-
3	989196		Hole Plug (almond)		Appelez-nous	-
3	989894		Hole Plug (new Avocado)		Appelez-nous	-
3	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
3	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
3	989892		Hole Plug (coffee)		Appelez-nous	-
4	989878		Hole, Plug (coffee)		Appelez-nous	-
4	534927		Hole Plug (white)		Appelez-nous	-
4	989879		Hole Plug (golden Harvest)		Appelez-nous	-
4	989880		Hole Plug (new Avocado)		Appelez-nous	-
4	989197		Hole Plug (almond)		Appelez-nous	-
5	943185		Tap Plate		Appelez-nous	-
6	944035		Bracket, Door Stop		Appelez-nous	-
7	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
7	488930		Screw (repair)		Appelez-nous	-
8	981033		Retainer, Gasket Side		Appelez-nous	-
9	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
10	986705		Door Gasket, Magnetic (for Platinum Model Only)		Appelez-nous	-
10	943057		Gasket, Magnetic Door		Appelez-nous	-
11	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
11	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
12	944190		Handle Center (white & Coffee)		Appelez-nous	-
12	1101325		Handle Center (platinum)		Appelez-nous	-
12	1101324		Handle Center (toast)		Appelez-nous	-
12	943079		Handle, Center (almond)		Appelez-nous	-
12	935086		Handle Center (new Avocado)		Appelez-nous	-
12	935087		Handle, Center (golden Harvest)		Appelez-nous	-
13	935077		Insert Handle, Top		Appelez-nous	-
14	944157		End Cap, Handle		Appelez-nous	-
15	944163		Top End Cap Handle				$ 53.54
16	935074		Shim Handle Top		Appelez-nous	-
17	489022		Screw, 6-20 X 3/8		Appelez-nous	-
18	943188		Spacer, Handle Door				$ 7.80
19	943187		Shim, Handle				$ 25.14
20	488923		Screw (repair)		Appelez-nous	-
20	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
21	488927		Screw (repair)		Appelez-nous	-
21	WP488920		Screw, 6-32 X 5/8   (Replaces: 488926)				$ 7.98
22	488915		Screw, 6-32 X 1/2		Appelez-nous	-
22	488925		Screw (repair)		Appelez-nous	-
23	488930		Screw (repair)		Appelez-nous	-
23	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
24	943139		Interior Door Panel Freezer		Appelez-nous	-
24	1101333		Interior Door Panel Freezer (for Platinum Model Only)		Appelez-nous	-
25	935919		Trim, Door Shelf		Appelez-nous	-
26	839904		Retainer, Door Trim (for Platinum Model Only)				$ 5.65
26	943125		Retainer, Door Trim		Appelez-nous	-
27	945116		Nameplate		Appelez-nous	-
28	991259		Tape Strip		Appelez-nous	-
