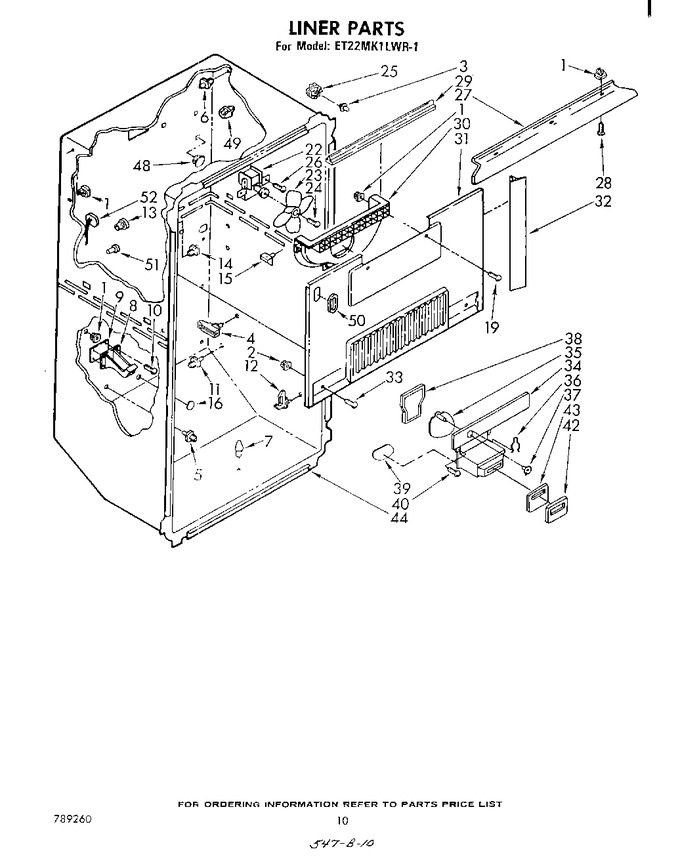

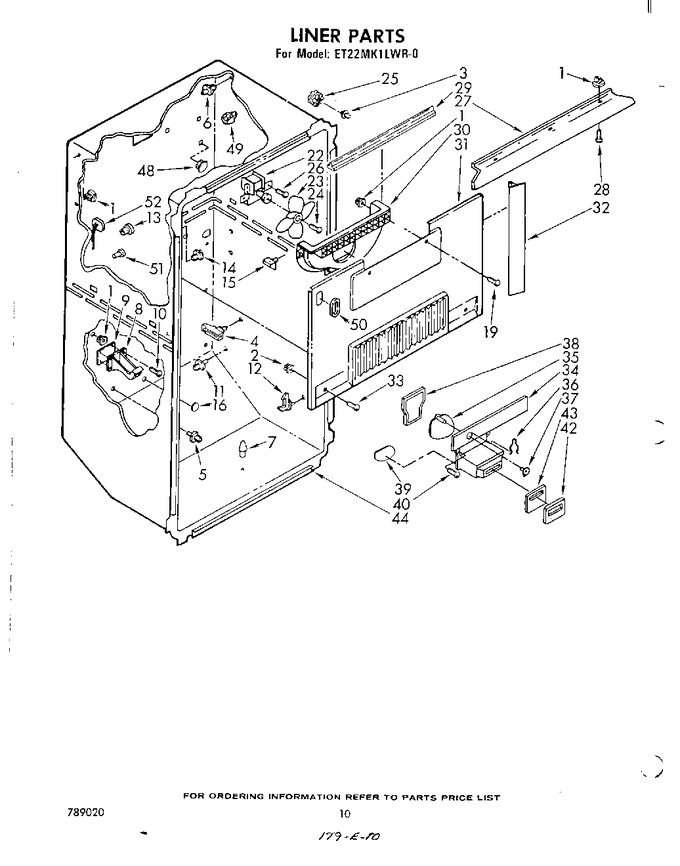

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	848445		Grommet		Appelez-nous	-
3	845722		Screw, Grommet		Appelez-nous	-
4	935243		Stud, Light Lens		Appelez-nous	-
5	521516		Shelf, Stud		Appelez-nous	-
6	526383		Stud		Appelez-nous	-
7	836409		Grommet, Crisper Cover		Appelez-nous	-
8	935241		Crisper Cover, Support Rear		Appelez-nous	-
9	935911		Spacer, Support Rear		Appelez-nous	-
10	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
11	982281		Shelf Stud		Appelez-nous	-
12	981443		Shelf Stud		Appelez-nous	-
13	538449		Screw Grommet		Appelez-nous	-
14	509108		Stud		Appelez-nous	-
15	836374		Retainer, Stud		Appelez-nous	-
16	519890		Hole, Plug		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
22	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 92.36
23	WP1100938		Blade, Fan   (Replaces: 548041)				$ 92.26
24	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
25	531933		Grommet				$ 5.70
26	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 8.52
27	982582		Baffle, Liner Top		Appelez-nous	-
28	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
29	935068		Gasket, Sealing		Appelez-nous	-
30	935067		Scroll, Fan		Appelez-nous	-
31	937710		Cover, Evaporator		Appelez-nous	-
32	991074		Gasket, Evaporator Cover		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
34	942226		Control Panel, Meat Pan		Appelez-nous	-
35	942228		Damper Control		Appelez-nous	-
36	942959		Retainer, Spring		Appelez-nous	-
37	837445		Knob, Control		Appelez-nous	-
38	942231		Seal, Control Panel		Appelez-nous	-
39	942229		Damper, Foam Pad		Appelez-nous	-
40	WP489069		Screw, 8 X 1/2   (Replaces: 488764)			Immediately	$ 8.40
42	943024		Backup Plate		Appelez-nous	-
43	943023		Seal, Control Panel		Appelez-nous	-
44	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
48	659598		Hole, Plug		Appelez-nous	-
49	523263		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
50	659776		Hole Plug, Evaporator		Appelez-nous	-
51	850738		Receptacle Cap		Appelez-nous	-
52	481658		Icemaker Harness		Appelez-nous	-
