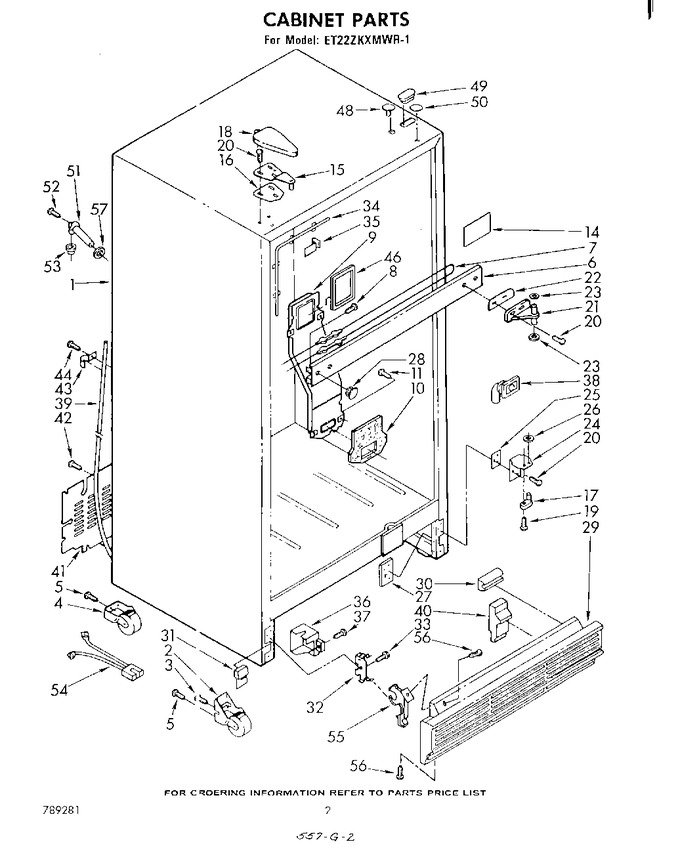

02 - Cabinet
03 - Breaker And Partition
04 - Shelf
05 - Unit
06 - Liner
07 - Freezer Door
08 - Refrigerator Door , Parts Not Illus
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 981127 | Roller, Front |
|
- | |||||
| 3 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 6 | 836067 | Center Rail (white) |
|
- | |||||
| 6 | 989908 | Center Rail (coffee) |
|
- | |||||
| 6 | 989909 | Center Rail (golden Harvest) |
|
- | |||||
| 6 | 989911 | Center Rail (almond) |
|
- | |||||
| 6 | 1100303 | Center Rail (toast) |
|
- | |||||
| 6 | 1100304 | Center Rail (platinum) |
|
- | |||||
| 7 | 989256 | Heater, Mullion |
|
- | |||||
| 8 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 8 | 487470 | Screw (repair) |
|
- | |||||
| 9 | 945264 | Air Duct |
|
- | |||||
| 10 | 945265 | Spacer, Outlet Air Duct |
|
- | |||||
| 11 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.57 | |||||
| 14 | 985316 | Seal, Strip |
|
- | |||||
| 15 | 842039 | Hinge, Top |
|
- | |||||
| 16 | 836192 | Shim, Hinge |
|
- | |||||
| 17 | 654366 | Hinge Pin, Bottom |
|
$ 27.15 | |||||
| 18 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 18 | 842010 | Hinge Cover (white) |
|
- | |||||
| 18 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 18 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 18 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 18 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 19 | 488714 | Screw 10-32 X 5/16 |
|
$ 5.48 | |||||
| 20 | 488949 | Screw (repair) |
|
- | |||||
| 20 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 21 | 836153 | Hinge, Center |
|
- | |||||
| 22 | 836155 | Shim, Hinge Center |
|
- | |||||
| 23 | WP488296 | Washer, 11/64 Nylon (Replaces: 488296) |
|
Immediately | $ 7.55 | ||||
| 24 | 836159 | Hinge, Bottom |
|
- | |||||
| 25 | 836196 | Shim, Hinge |
|
- | |||||
| 26 | WP487802 | Washer (Replaces: 488184) |
|
Immediately | $ 7.91 | ||||
| 27 | 836162 | Tap Plate |
|
- | |||||
| 28 | 835974 | Hole, Plug (white) |
|
- | |||||
| 28 | 989881 | Hole Plug (coffee) |
|
- | |||||
| 28 | 989882 | Hole Plug (golden Harvest) |
|
- | |||||
| 28 | 989193 | Hole, Plug (almond) |
|
- | |||||
| 28 | 1100174 | Hole Plug (toast) |
|
- | |||||
| 28 | 1100175 | Hole Plug (platinum) |
|
- | |||||
| 29 | 1100307 | Exterior, Grille (toast) |
|
- | |||||
| 29 | 944233 | Exterior, Grille (white) |
|
- | |||||
| 29 | 944234 | Exterior, Grille (coffee) |
|
- | |||||
| 29 | 944235 | Exterior, Grille (golden Harvest) |
|
- | |||||
| 29 | 944237 | Exterior, Grille (almond) |
|
- | |||||
| 29 | 1100308 | Exterior, Grille (platinum) |
|
- | |||||
| 30 | 546131 | Bumper, Grille |
|
- | |||||
| 31 | 989928 | Corner, Filler Grille (coffee) |
|
- | |||||
| 31 | 1100182 | Filler, Grille (toast) |
|
- | |||||
| 31 | 838535 | Corner, Filler Grille (white) |
|
- | |||||
| 31 | 989929 | Corner, Filler Grille (golden Harvest) |
|
- | |||||
| 31 | 1100183 | Filler, Grille (platinum) |
|
- | |||||
| 31 | 989931 | Corner, Filler Grille (almond) |
|
- | |||||
| 32 | 989068 | Clip, Grille |
|
- | |||||
| 33 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 34 | 934447 | Heater, Stile |
|
- | |||||
| 35 | 935663 | Clip, Heater |
|
- | |||||
| 36 | 549947 | Box, Junction |
|
- | |||||
| 37 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 38 | 841687 | Drain Fitting |
|
- | |||||
| 39 | 8316810 | Drain, Tube (Replaces: 982894) |
|
$ 125.72 | |||||
| 40 | 836372 | Insert, Air Baffle |
|
- | |||||
| 41 | 850459 | Cover, Unit Compartment |
|
- | |||||
| 42 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 43 | 836077 | Clamp, Tube |
|
- | |||||
| 44 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 8.40 | ||||
| 46 | 945047 | Air Duct, Seal |
|
- | |||||
| 48 | 1101315 | Hole, Plug (platinum) |
|
- | |||||
| 48 | 989957 | Hole, Plug (golden Harvest) |
|
- | |||||
| 48 | 989958 | Hole Plug (almond) |
|
- | |||||
| 48 | 1101314 | Hole, Plug (toast) |
|
- | |||||
| 48 | 849391 | Hole, Plug (white) |
|
- | |||||
| 48 | 989955 | Hole Plug (coffee) |
|
- | |||||
| 49 | 992771 | Hole Plug (coffee) |
|
- | |||||
| 49 | 1101316 | Hole Plug (toast) |
|
- | |||||
| 49 | 992770 | Hole Plug (white) |
|
- | |||||
| 49 | 992774 | Hole Plug (almond) |
|
- | |||||
| 49 | 992773 | Hole Plug (golden Harvest) |
|
- | |||||
| 49 | 1101317 | Hole Plug (platinum) |
|
- | |||||
| 50 | 989875 | Hole Plug (coffee) |
|
- | |||||
| 50 | 1100177 | Hole Plug (platinum) |
|
- | |||||
| 50 | 1100176 | Hole Plug (toast) |
|
- | |||||
| 50 | 989195 | Hole Plug (almond) |
|
- | |||||
| 50 | 842031 | Hole Plug (white) |
|
- | |||||
| 50 | 989876 | Hole Plug (golden Harvest) |
|
- | |||||
| 51 | WP2196157 | Fitting, Water Tube (Replaces: 841907) |
|
Immediately | $ 12.59 | ||||
| 52 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.57 | |||||
| 53 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 8.67 | |||||
| 54 | 548734 | Wire Assembly (water Valve) |
|
- | |||||
| 55 | WP944224 | Grille Support (Replaces: 944224) |
|
$ 7.94 | |||||
| 56 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 57 | WP1106508 | Seal, Gasket (Replaces: 1103059) |
|
Immediately | $ 10.43 |
