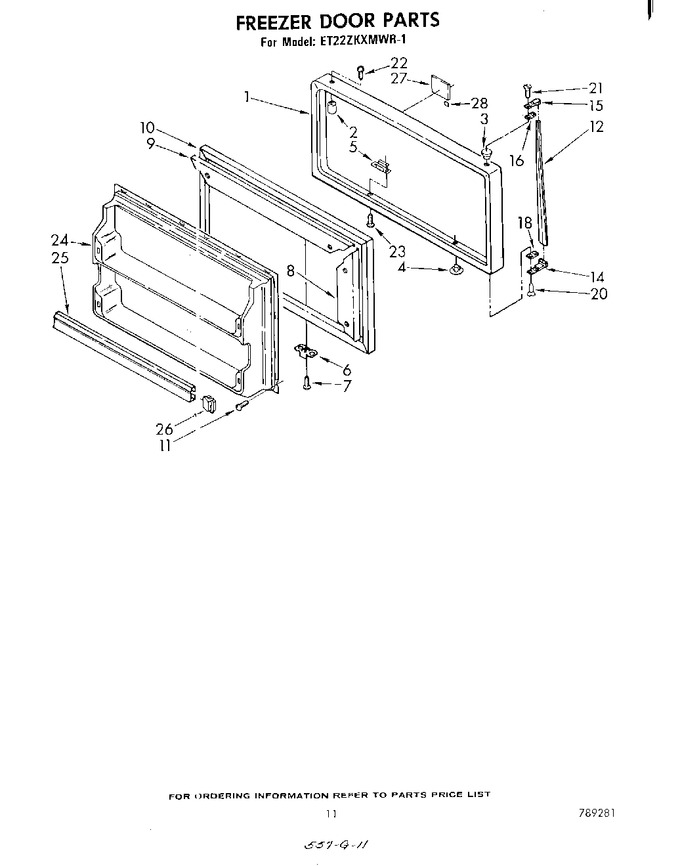

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Breaker And Partition
04 - Shelf
05 - Unit
06 - Liner
07 - Freezer Door
08 - Refrigerator Door , Parts Not Illus
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944183 | Freezer, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 1101321 | Freezer, Door Panel (platinum) |
|
- | |||||
| 1 | 1101320 | Freezer, Door Panel (toast) |
|
- | |||||
| 1 | 944185 | Freezer, Door Panel (almond) |
|
- | |||||
| 1 | 944181 | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 944182 | Freezer, Door Panel (coffee) |
|
- | |||||
| 2 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 3 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 3 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 3 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 3 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 3 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 3 | 989196 | Hole Plug (almond) |
|
- | |||||
| 4 | 534927 | Hole Plug |
|
- | |||||
| 5 | 943185 | Tap Plate |
|
- | |||||
| 6 | 944035 | Bracket, Door Stop |
|
- | |||||
| 7 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 8 | 981033 | Retainer, Gasket Side |
|
- | |||||
| 9 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 10 | 986705 | Door Gasket, Magnetic (for Platinum Model Only) |
|
- | |||||
| 10 | 943057 | Gasket, Magnetic Door |
|
- | |||||
| 11 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 11 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 12 | 982945 | Handle Center |
|
- | |||||
| 14 | 943182 | End Cap Handle |
|
- | |||||
| 15 | WP2191882 | Top End Cap Handle (Replaces: 943184) |
|
$ 62.77 | |||||
| 16 | 943187 | Shim Handle Top |
|
$ 25.14 | |||||
| 18 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 20 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 20 | 488923 | Screw (repair) |
|
- | |||||
| 21 | WP488920 | Screw, 6-32 X 5/8 (Replaces: 488926) |
|
$ 7.98 | |||||
| 21 | 488927 | Screw (repair) |
|
- | |||||
| 22 | 488925 | Screw (repair) |
|
- | |||||
| 22 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 23 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 23 | 488930 | Screw (repair) |
|
- | |||||
| 24 | 944499 | Interior Door Panel Freezer |
|
- | |||||
| 24 | 1101608 | Interior Door Panel Freezer (for Platinum Model Only) |
|
- | |||||
| 25 | 983082 | Trim, Door Shelf |
|
- | |||||
| 26 | 839975 | Retainer, Door Trim (for Platinum Model Only) |
|
$ 5.84 | |||||
| 26 | 943127 | Retainer, Door Trim |
|
- | |||||
| 27 | 945117 | Nameplate |
|
- | |||||
| 28 | 991259 | Tape Strip |
|
- |
