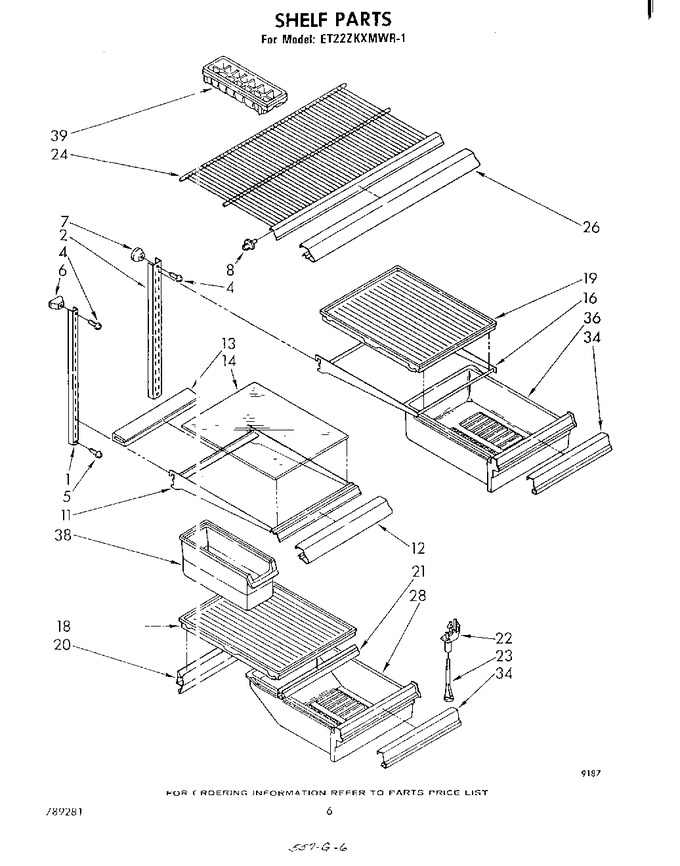

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	934267		Shelf, Ladder (2)		Appelez-nous	-
2	936230		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	520965		Screw, Support Ladder				$ 31.35
7	520959		Screw Support, Center Ladder		Appelez-nous	-
8	529758		Shelf, Stud		Appelez-nous	-
11	936381		Shelf, Cantilever		Appelez-nous	-
12	845610		Trim, Shelf		Appelez-nous	-
13	1101581		Reflector, Cantilever		Appelez-nous	-
14	1101580		Glass, Cantilever		Appelez-nous	-
16	942590		Cantilever, Pan Shelf		Appelez-nous	-
18	1101577		Pan Slide & Cover		Appelez-nous	-
19	1101578		Pan Slide & Cover (meat)		Appelez-nous	-
20	935860		Crisper Gasket, Rear		Appelez-nous	-
21	983114		Crisper Gasket, Front		Appelez-nous	-
22	848562		Support, Crisper Cover				$ 24.30
23	836410		Post, Cripser Cover				$ 5.84
24	935245		Shelf, Freezer		Appelez-nous	-
26	981454		Trim, Shelf Front		Appelez-nous	-
28	935201		Pan, Crisper		Appelez-nous	-
28	1100327		Crisper Pan (for Platinum Model Only)		Appelez-nous	-
34	986316		Overlay, Front Cover		Appelez-nous	-
36	1100329		Pan, Meat (for Platinum Model Only)		Appelez-nous	-
36	935203		Meat Pan		Appelez-nous	-
38	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
39	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
