SELECT A DIAGRAM

01 - Cabinet

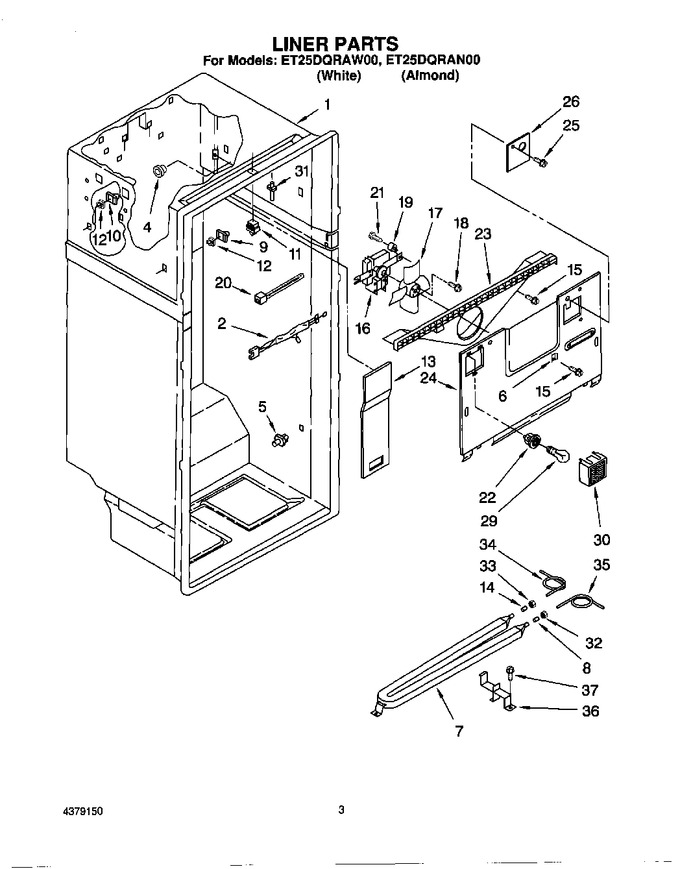

02 - Liner


03 - Compartment Separator


04 - Freezer Door


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
4	848445		Grommet (2)		Appelez-nous	-
5	1106612		Shelf Stud (2)				$ 7.56
6	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
7	2160600		Reservoir-water		Appelez-nous	-
8	4387491		Insert,   (Replaces: 841707)				$ 7.84
9	946356		Stud, Front (2)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 39.68
11	W11457217		Rocker Arm Switch   (Replaces: 1115373)				$ 38.18
12	946355		Support Stud (4)		Appelez-nous	-
13	2168581		Cover, Air Duct		Appelez-nous	-
14	1129177		Insert				$ 5.27
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	482731		Motor, Fan   (Replaces: 2154977)			Immediately	$ 79.05
17	WP1100938		Blade, Fan   (Replaces: 1127752)				$ 87.87
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	531933		Grommet (2)				$ 5.70
20	WPW10339879		Strap   (Replaces: 2165001)				$ 7.90
21	489168		Screw		Appelez-nous	-
22	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
23	1114593		Scroll, Fan		Appelez-nous	-
24	2160649		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 944760)				$ 44.97
29	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 12.93
30	981365		Light Lens		Appelez-nous	-
31	WP2149540		Stud (2)   (Replaces: 2149540)				$ 10.44
32	1129179		Nut, Compression		Appelez-nous	-
33	1108005		Nut, Compression		Appelez-nous	-
34	W10823511		Tube, Water   (Replaces: 653200)			Immediately	$ 32.41
35	2160794		Tube, Water		Appelez-nous	-
36	2168550		Bracket, Water Reservoir		Appelez-nous	-
37	488280		Screw		Appelez-nous	-
