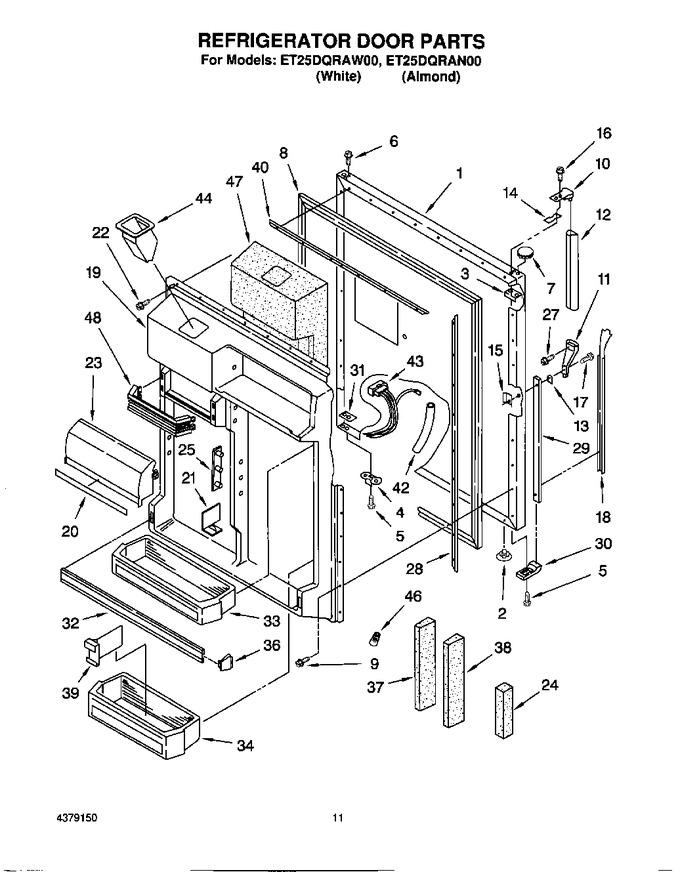

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2168608		Panel, Refrigerator Door (includes Insulation) (white)		Appelez-nous	-
1	2160678		Panel, Refrigerator Door (includes Insulation) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	988420		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.94
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
8	1121176		Door Gasket, Magnetic (almond Model)		Appelez-nous	-
8	1125923		Door Gasket, Magnetic (white Model)		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.50
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	2150153		Insert, Handle (white)		Appelez-nous	-
18	2150154		Insert, Handle (almond)		Appelez-nous	-
19	2160667		Interior Door Panel		Appelez-nous	-
20	1118208		Trim, Door Compartment		Appelez-nous	-
21	2160050		Divider, Door Shelf		Appelez-nous	-
22	WP488729		Screw, Corner (8)   (Replaces: 489287)			Immediately	$ 7.79
23	2148847		Compartment Door Left Side,		Appelez-nous	-
24	2168584		Support, Pin Plate		Appelez-nous	-
25	1116986		Pin Plate (6)				$ 12.10
27	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
28	1123245		Retainer, Gasket		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	2160674		Tap Plate		Appelez-nous	-
32	2157313		Trim, Door Shelf				$ 86.71
33	2148645		Bin, Door Shelf (1)		Appelez-nous	-
34	2148646		Bin, Door Shelf (deep) (2)		Appelez-nous	-
36	1105785		End Cap Trim		Appelez-nous	-
37	1118008		Door Dike, Center		Appelez-nous	-
38	1118007		Door Dike, Side (2)		Appelez-nous	-
39	2152335		Divider, Bin		Appelez-nous	-
40	1121119		Retainer, Gasket		Appelez-nous	-
42	2160673		Tube-door Wiring		Appelez-nous	-
43	2160685		Plug, Crossover		Appelez-nous	-
44	2160684		Ice Chute		Appelez-nous	-
46	227991		Connector Wire		Appelez-nous	-
47	2160683		Insulation, Dispenser		Appelez-nous	-
48	2160772		Trim-door Shelf		Appelez-nous	-
