Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2159164 Panel, Freezer Door (also Order Item 21) (white) Appelez-nous -
1 2159167 Panel, Freezer Door (also Order Item 21) (almond) Appelez-nous -
2 989197 Hole Plug (2) (almond) Appelez-nous -
2 534927 Hole Plug (2) (white) Appelez-nous -
3 943185 Plate, Tap (4) Appelez-nous -
4 944035 Bracket, Door Stop Appelez-nous -
5 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 8.24

6 WP8281206 Screw, 8-15 X 1/2   (Replaces: 489028) Special Order $ 8.37

7 WP2212648 Hole Plug (white)   (Replaces: 844478) In-Stock Immediately $ 8.19

7 989196 Hole Plug (almond) Appelez-nous -
8 1121202 Door Gasket, Magnetic (almond) Appelez-nous -
8 1125922 Door Gasket, Magnetic (white) Appelez-nous -
9 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

9 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

10 944163 Handle End, Top Special Order $ 53.54

11 944157 Handle End Appelez-nous -
12 2162694 Handle, Center (almond) Appelez-nous -
12 2162741 Handle, Center (white) Appelez-nous -
13 943187 Shim, Handle Special Order $ 25.14

14 943188 Spacer, Handle Door Special Order $ 7.80

15 2160724 Interior Door Panel Appelez-nous -
16 WP488920 Screw, 8 X 5/8   (Replaces: 489006) Special Order $ 7.98

17 2168578 Trim, Door Shelf Appelez-nous -
18 1116986 Pip Plate (6) Special Order $ 12.10

19 1118008 Door Dike, Middle Appelez-nous -
20 1121119 Retainer, Gasket Appelez-nous -
21 876029 Kit, Foam Slab (required When Replacing Exterior Door Panel) Appelez-nous -
22 4386917 End Cap, Trim (4)   (Replaces: 1105685) In-Stock Immediately $ 18.90

23 935074 Shim, Endcap (top) Appelez-nous -
24 489022 Screw, 6-20 X 3/8 (2) Appelez-nous -
25 1108828 Insert, Handle (white) Appelez-nous -
25 1108830 Insert, Handle (almond) Appelez-nous -
27 1121120 Retainer, Gasket Appelez-nous -
28 WP488729 Corner Screw (8)   (Replaces: 489287) In-Stock Immediately $ 8.28

29 1118007 Door Dike, Side (2) Appelez-nous -
30 2148645 Door Bin (3) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

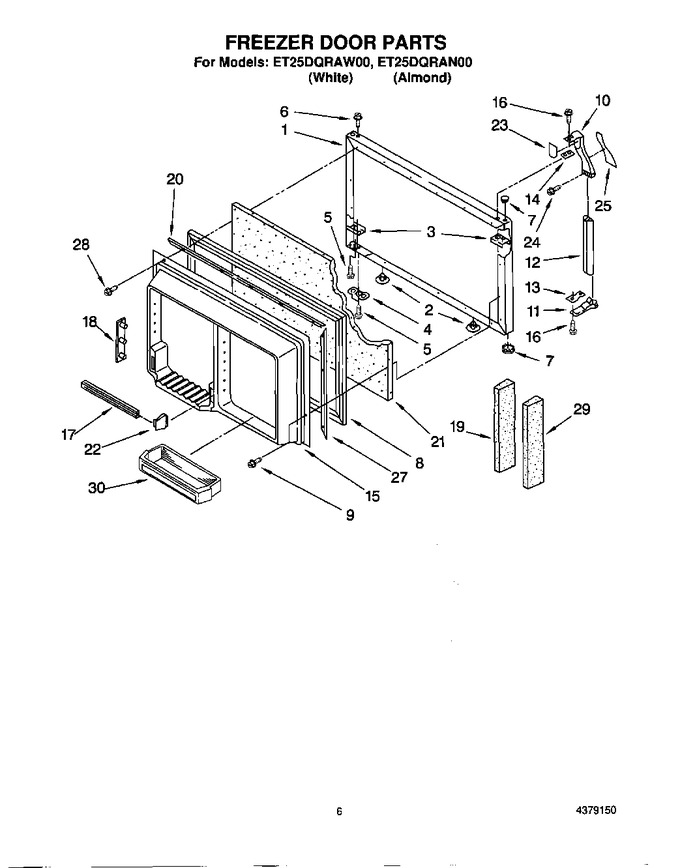

Diagram for ET25DQRAN00
