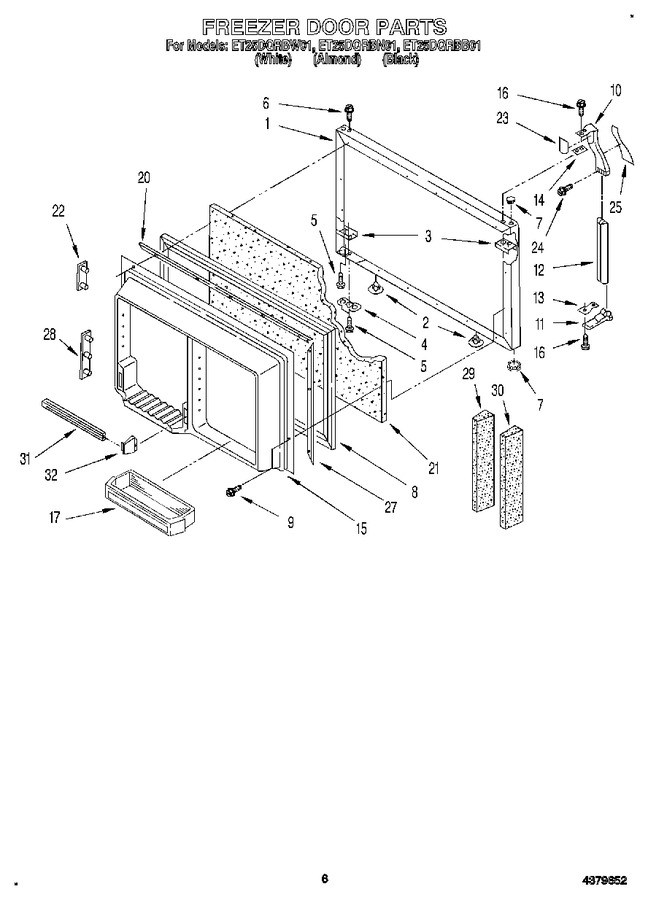

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159164		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2161856		Panel, Freezer Door (also Order Item 21) (black)		Appelez-nous	-
1	2159167		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	1110485		Hole Plug (2) (black)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw   (Replaces: 489028)				$ 7.94
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 23.06
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2170603		Door Gasket Magnetic (black Model)		Appelez-nous	-
8	1125922		Door Gasket Magnetic (white Model)		Appelez-nous	-
8	1121202		Door Gasket Magnetic (almond Model)		Appelez-nous	-
9	WP489442		Screw (26)   (Replaces: 489442)			Immediately	$ 10.94
10	944163		Handle End, Top				$ 53.54
11	944157		Handle End		Appelez-nous	-
12	2159622		Handle, Center (black)		Appelez-nous	-
12	2162694		Handle, Center (almond)		Appelez-nous	-
12	2162741		Handle, Center (white)		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	2160724		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.49
17	2162893		Bin, Shelf (3)		Appelez-nous	-
20	1121119		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1118048		Pin Plate (4)		Appelez-nous	-
23	935074		Shim, Endcap (top)		Appelez-nous	-
24	489022		Screw		Appelez-nous	-
25	1108828		Insert, Handle (white)		Appelez-nous	-
25	1108830		Insert, Handle (almond)		Appelez-nous	-
25	1114390		Insert, Handle (black)		Appelez-nous	-
27	1121120		Retainer, Gasket		Appelez-nous	-
28	1116986		Pin Plate (2)				$ 12.10
29	1118008		Reinforcement, Mid Door		Appelez-nous	-
30	1118007		Reinforcement, Side Door		Appelez-nous	-
31	2170856		Trim, Door Shelf		Appelez-nous	-
32	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.00
