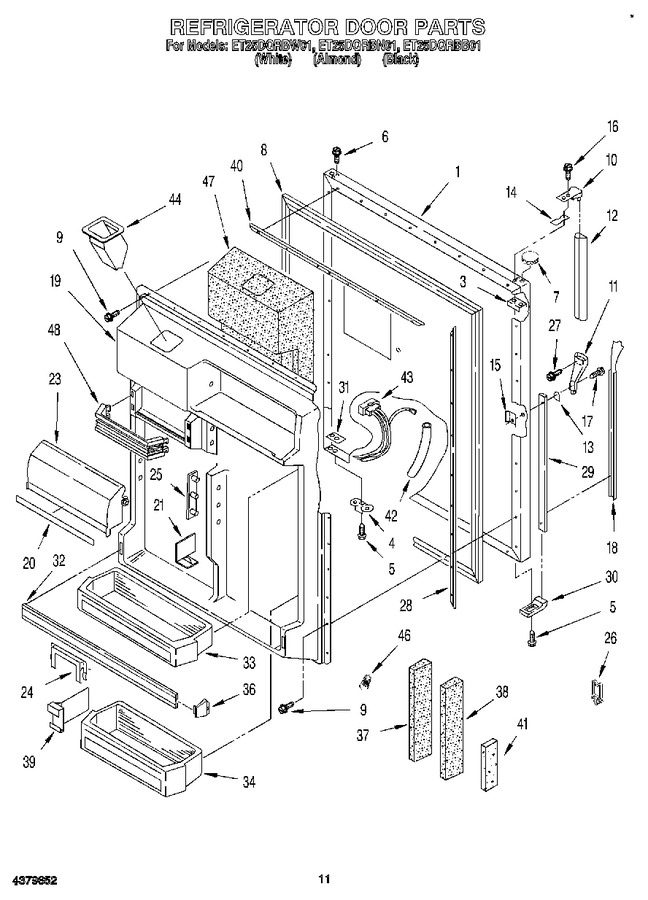

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2168608 | Panel, Refrigerator Door (includes Insulation) (white) |
|
- | |||||
| 1 | 2168609 | Panel, Refrigerator Door (includes Insulation) (black) |
|
- | |||||
| 1 | 2160678 | Panel, Refrigerator Door (includes Insulation) (almond) |
|
- | |||||
| 3 | 943185 | Plate, Tap (2) |
|
- | |||||
| 4 | 988420 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2160808) |
|
$ 24.21 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 1125923 | Door Gasket, Magnetic (white Model) |
|
- | |||||
| 8 | 1121176 | Door Gasket, Magnetic (almond Model) |
|
- | |||||
| 8 | 2170602 | Door Gasket, Magnetic (black Model) |
|
- | |||||
| 9 | WP489442 | Screw (32) (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | 944157 | Handle End |
|
- | |||||
| 11 | 1109189 | Handle End, Side |
|
- | |||||
| 12 | 2150150 | Handle, Center (white) |
|
- | |||||
| 12 | 943068 | Handle Center (almond) |
|
- | |||||
| 12 | 1120781 | Handle, Center (black) |
|
- | |||||
| 13 | 935075 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 2151669) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2150154 | Insert, Handle (almond) |
|
- | |||||
| 18 | 1120830 | Insert, Handle (black) |
|
- | |||||
| 18 | 2150153 | Insert, Handle (white) |
|
- | |||||
| 19 | 2160667 | Interior Door Panel |
|
- | |||||
| 20 | 2162896 | Trim, Door Compartment |
|
- | |||||
| 21 | 1123293 | Divider, Door Shelf |
|
- | |||||
| 23 | 2148289 | Compartment Door |
|
- | |||||
| 24 | 2163566 | Retainer, Bottle |
|
- | |||||
| 25 | 1116986 | Pin Plate (6) |
|
$ 12.10 | |||||
| 26 | 2168567 | Clip |
|
- | |||||
| 27 | 489022 | Screw |
|
- | |||||
| 28 | 1123245 | Retainer, Gasket |
|
- | |||||
| 29 | 935871 | Retainer, Insert |
|
- | |||||
| 30 | 1105804 | Endcap, Insert Retainer |
|
- | |||||
| 31 | 2160674 | Tap Plate |
|
- | |||||
| 32 | 2162842 | Trim, Door Shelf |
|
- | |||||
| 33 | 2162893 | Bin, Door Shelf |
|
- | |||||
| 34 | 2162892 | Bin, Door Shelf (deep) (2) |
|
- | |||||
| 36 | 4386917 | End Cap, Trim (2) (Replaces: 1105685) |
|
Immediately | $ 18.90 | ||||
| 37 | 1118008 | Door Dike, Center |
|
- | |||||
| 38 | 1118007 | Door Dike, Side (2) |
|
- | |||||
| 39 | 2152335 | Divider, Bin |
|
- | |||||
| 40 | 1121119 | Retainer, Gasket |
|
- | |||||
| 41 | 2168584 | Support, Pin Plate |
|
- | |||||
| 42 | 2160673 | Tube-door Wiring |
|
- | |||||
| 43 | 2174771 | Plug, Crossover |
|
- | |||||
| 44 | 2160684 | Ice Chute |
|
- | |||||
| 46 | 227991 | Connector Wire |
|
- | |||||
| 47 | 2160683 | Insulation, Dispenser |
|
- | |||||
| 48 | 2170852 | Trim-door Shelf |
|
- |
