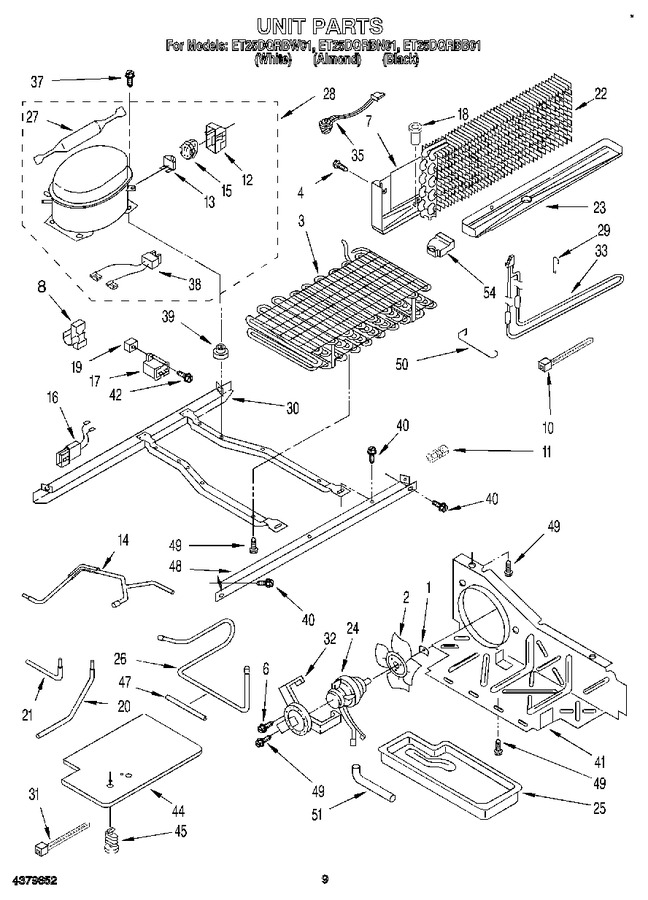

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	851732		Fan, Blade		Appelez-nous	-
3	2164504		Condenser Assembly		Appelez-nous	-
4	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
6	681390		Screw   (Replaces: 489019)				$ 13.06
7	1116511		Drain Pan & Heat Shield		Appelez-nous	-
8	2155658		Wire Clip, Water Tube		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 7.90
11	WP4211117		Connector, Union   (Replaces: 2150347)				$ 9.96
12	WP2162358		Cover, Terminal   (Replaces: 2162358)				$ 90.75
13	WP2154697		Overload (includes Relay) Production   (Replaces: 2154697)				$ 130.73
14	2162475		Tube, Discharge		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2169137		Running Capacitor		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
21	2154109		Tube, Process				$ 72.63
22	2174780		Evaporator		Appelez-nous	-
23	1114597		Drain Pan		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2162473		Tube, Suction		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 52.57
28	876765		Tube Kit			Immediately	$ 86.33
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27, 38 & 39) (also Order)   (Replaces: 2169443)			Immediately	$ 612.90
29	851358		Support, Heater		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	WPW10339879		Strap   (Replaces: 2165001)				$ 7.90
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162021		Heater, Defrost		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
37	876811		Screw   (Replaces: 489373)				$ 7.42
38	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.10
39	876811		Grommet   (Replaces: 1100826)				$ 7.42
40	WP489427		Screw   (Replaces: 489427)				$ 7.47
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
44	2157369		Cover, Unit Bottom		Appelez-nous	-
45	489396		Clip				$ 10.72
47	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 20.30
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 80.64
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
50	1110663		Guard, Fan		Appelez-nous	-
51	2154119		Tube, Drain		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 91.35
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 130.71
54	2174787		Wedge, Air Baffle		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 128.09
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
