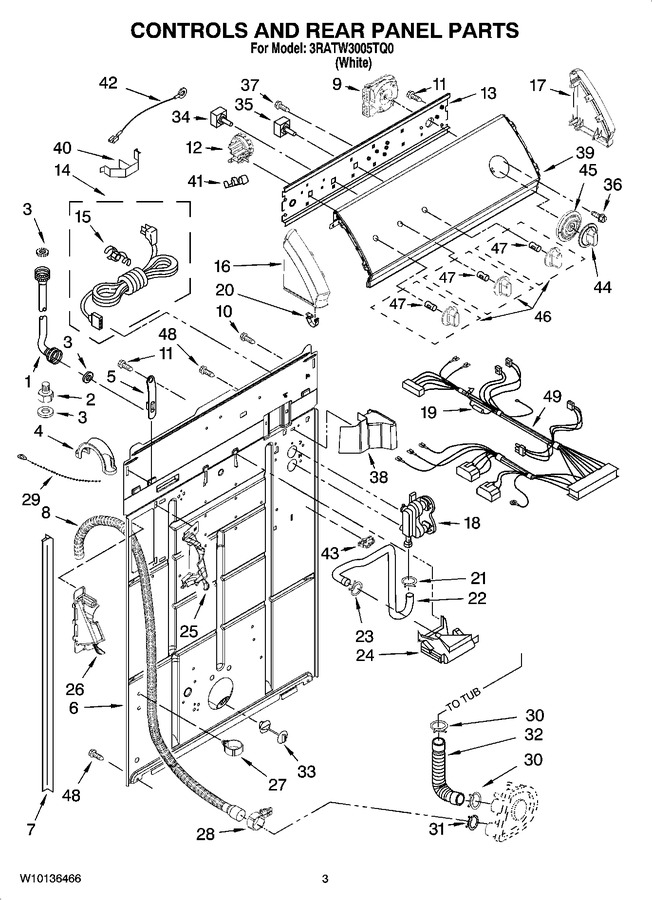

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10615831 | Hose, Water Inlet (red) (Replaces: 3949382) |
|
$ 103.65 | |||||
| 1 | WPW10615809 | Hose, Water Inlet (blue) (Replaces: 3949383) |
|
$ 104.71 | |||||
| 2 | WP3357397 | Adapter, Water Inlet Hose (Replaces: 3357397) |
|
$ 93.71 | |||||
| 3 | WP16123 | Washer, Water Inlet Hose (1-1/16 X 5/8) (Replaces: 3976300) |
|
$ 8.16 | |||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 27 & 28) (Replaces: W10127860) |
|
Immediately | $ 67.38 | ||||
| 9 | WPW10222216 | Timer, Control (50 Hz.) (motor Not A Service Part) (Replaces: W10106010) |
|
$ 367.79 | |||||
| 10 | W10080580 | Screw, Ground |
|
- | |||||
| 11 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 12 | W10339251 | Switch, Water Level (Replaces: 8577844) |
|
Immediately | $ 307.01 | ||||
| 13 | 8559504 | Bracket, Control |
|
- | |||||
| 14 | W10111552 | Cord, Power |
|
- | |||||
| 15 | 8559337 | Strain Relief, Power Cord |
|
- | |||||
| 16 | W10128464 | Cap, End (l.h.) (includes Item 20) |
|
- | |||||
| 17 | W10128463 | Cap, End (r.h.) (includes Item 20) |
|
- | |||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 302.44 | |||||
| 19 | WPW10111181 | Fuse (in Harness) (Replaces: 3951198) |
|
$ 34.81 | |||||
| 20 | WP8312709 | Clip, Console (Replaces: W10129041) |
|
Immediately | $ 16.35 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 26 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 29 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: W10094820) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: W10112110) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: W10116973) |
|
Immediately | $ 28.99 | ||||
| 33 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 34 | WPW10168263 | Switch, Water Temperature (Replaces: W10111368) |
|
$ 140.72 | |||||
| 35 | WPW10168262 | Switch, Rotary (Replaces: W10111370) |
|
$ 136.25 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | W10130933 | Screw, Ground |
|
- | |||||
| 38 | 8314879 | Shield, Inlet Valve |
|
- | |||||
| 39 | W10115414 | Panel, Console |
|
- | |||||
| 40 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 41 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 11.37 | |||||
| 42 | 3398893 | Wire, Ground |
|
- | |||||
| 43 | 3352944 | Clip, Harness |
|
- | |||||
| 44 | W10110061 | Knob, Timer |
|
$ 41.35 | |||||
| 45 | W10110062 | Dial, Timer |
|
$ 20.98 | |||||
| 46 | WPW10110063 | Knob, Control (Replaces: W10110063) |
|
Immediately | $ 59.13 | ||||
| 47 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 48 | W10080260 | Screw, 10-16 X 3/8 |
|
- | |||||
| 49 | W10133461 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
