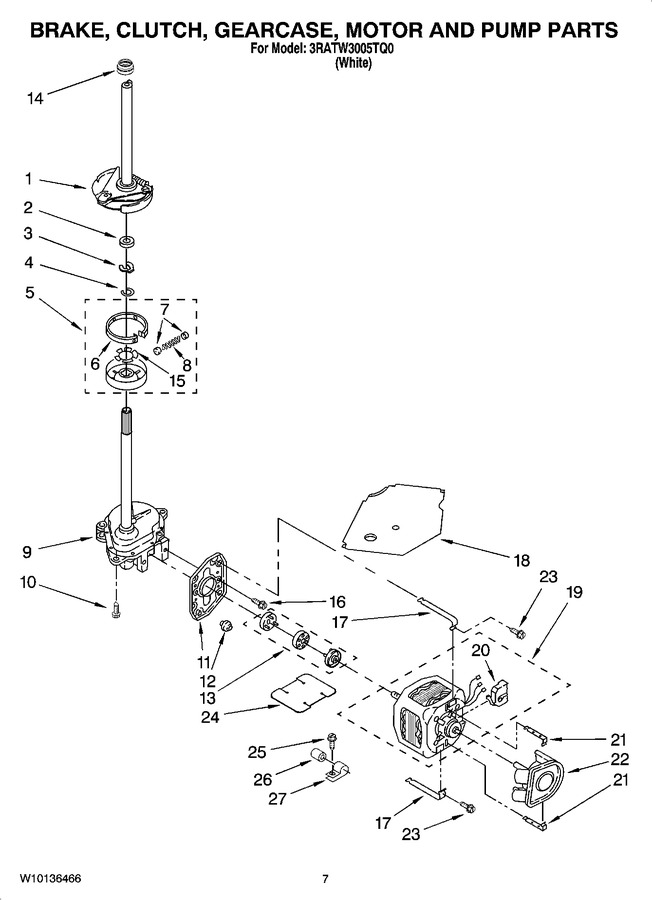

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10117003 | Brake & Drive Tube (complete) (refer To Page 11 For Further Breakdown) (Replaces: W10117003) |
|
$ 353.66 | |||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 7.71 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: W10080230) |
|
$ 12.02 | |||||
| 4 | 285353 | Ring, Retainer (Replaces: 63283) |
|
$ 8.11 | |||||
| 5 | WPW10116968 | Clutch (complete) (Replaces: W10116968) |
|
$ 137.05 | |||||
| 6 | W10118761 | Band & Lining, Clutch |
|
- | |||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 7.55 | |||||
| 8 | WP3946792 | Spring, Clutch (Replaces: 3946792) |
|
$ 7.49 | |||||
| 9 | W10116916 | Gearcase (complete) (refer To Page 12 For Further Breakdown) |
|
- | |||||
| 10 | W10080600 | Screw, Gearcase To Base (3) |
|
- | |||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 117.10 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 11.82 | |||||
| 13 | 285753A | Coupling, Motor & Isolation (Replaces: 3364003) |
|
Immediately | $ 25.90 | ||||
| 14 | WP8577374 | Seal (Replaces: 8577374) |
|
Immediately | $ 7.19 | ||||
| 15 | WP3355454 | Clip, Anti-rattle (Replaces: 3355454) |
|
$ 7.84 | |||||
| 16 | W10080610 | Screw |
|
- | |||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 3349637) |
|
$ 7.94 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 3362089) |
|
$ 37.43 | |||||
| 19 | 3950297 | Motor, Main Drive |
|
$ 249.69 | |||||
| 20 | 8529896 | Switch, Main Drive Motor |
|
$ 91.15 | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 8546127) |
|
$ 8.14 | |||||
| 22 | WP3363394 | Pump (complete) (Replaces: 3363394) |
|
Immediately | $ 61.66 | ||||
| 23 | WP273556 | Screw, 10-16 X 5/8 (Replaces: W10080650) |
|
Immediately | $ 7.82 | ||||
| 24 | 8316060 | Shield, Motor |
|
$ 73.28 | |||||
| 25 | W10080260 | Screw, 10-16 X 5/16 |
|
- | |||||
| 26 | WP482156 | Capacitor (Replaces: 8572719) |
|
$ 107.93 | |||||
| 27 | W10083210 | Clamp, Capacitor |
|
- |
