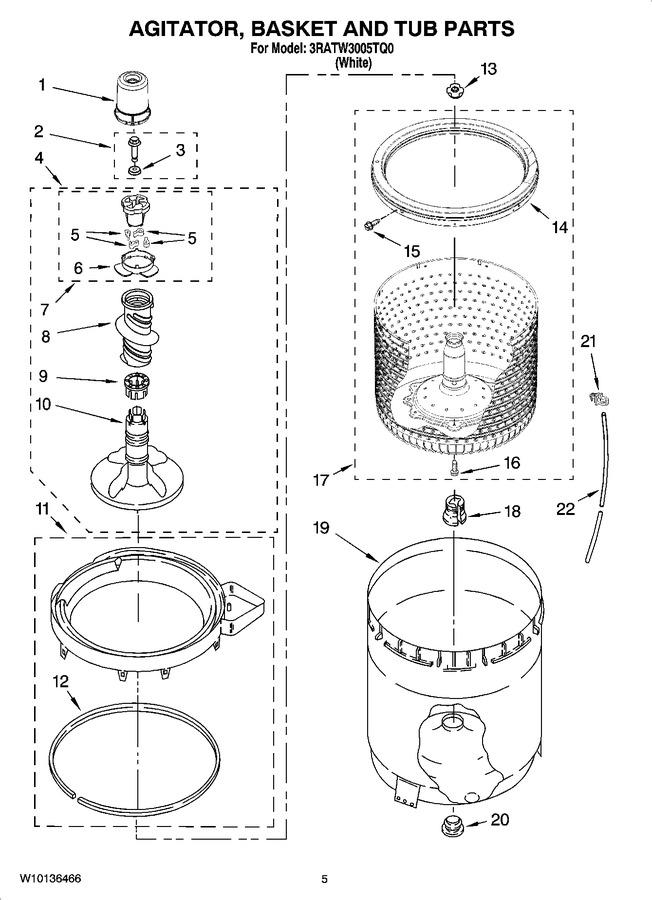

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533252 | Dispenser, Fabric Softener (Replaces: 8533252) |
|
$ 88.03 | |||||
| 2 | W10772621 | Screw & Washer (5/16-24 X 1) (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WPW10093671 | Agitator (complete) (Replaces: W10093671) |
|
$ 333.30 | |||||
| 5 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 6 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 7.84 | |||||
| 7 | 285748 | Cam-driven (Replaces: 3363662) |
|
Immediately | $ 35.75 | ||||
| 8 | WP3360824 | Auger, Agitator (Replaces: 3360824) |
|
$ 211.97 | |||||
| 9 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 10 | W10093670 | Agitator |
|
$ 229.92 | |||||
| 11 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 222.23 | ||||
| 12 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 28.25 | ||||
| 13 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 14 | W10116946 | Balance Ring |
|
- | |||||
| 15 | W10112540 | Screw, Balance Ring |
|
- | |||||
| 16 | W10112537 | Screw, Adapter Assembly |
|
- | |||||
| 17 | W10042080 | Basket & Balance Ring |
|
$ 86.00 | |||||
| 18 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 19 | 63849 | Tub |
|
$ 291.70 | |||||
| 20 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 | ||||
| 21 | 2219077 | Clip, Pressure Switch Hose |
|
$ 61.18 | |||||
| 22 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 |
