SELECT A DIAGRAM

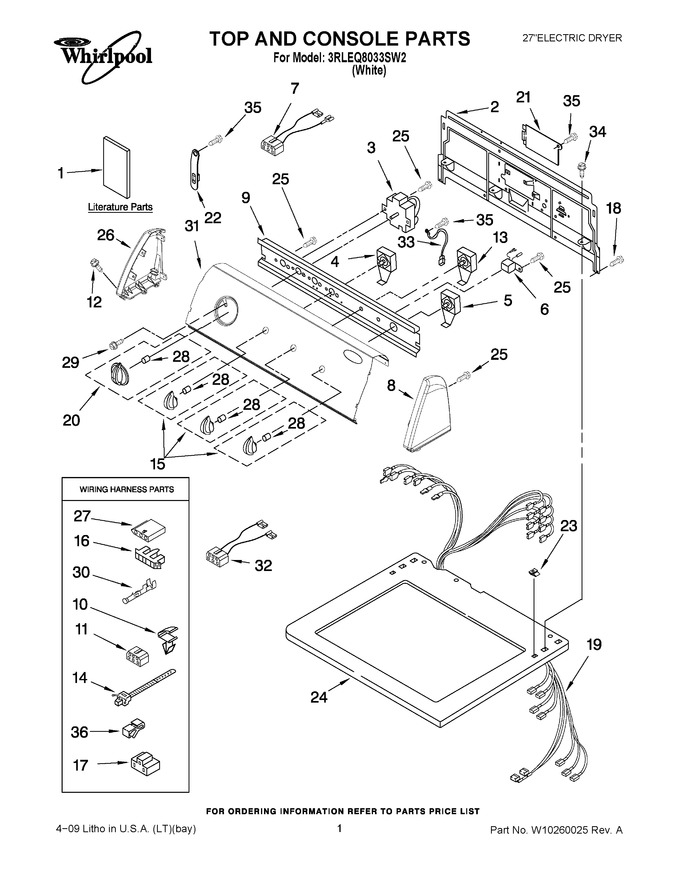

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8315975		Guide, User & Installation (uk)		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	W10241044		Wiring Diagram		Appelez-nous	-
1	W10131582		Guide, Use & Care		Appelez-nous	-
1	W10115523		Instructions, Installation		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WPW10116281		Timer   (Replaces: W10116281)				$ 310.68
4	W10168170		Switch, Temperature				$ 196.84
5	W10238464		Switch, Push-to-start		Appelez-nous	-
6	8522378		Mini Buzzer (non-adjustable)		Appelez-nous	-
7	3397695		Wire, Jumper (guard On/off)				$ 86.40
8	8541779		Cap, End (r.h.)		Appelez-nous	-
9	W10121170		Bracket, Control		Appelez-nous	-
10	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
11	3347243		Connector 6-circuit		Appelez-nous	-
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	W10168169		Switch, Wrinkle Guard				$ 89.11
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	8544937		Knob, Control (3)				$ 24.98
16	3397269		Connector, Timer				$ 25.55
17	3401144		Connector, (pts Relay)				$ 12.20
18	W10080830		Screw Ground		Appelez-nous	-
19	W10242812		Harness, Wiring		Appelez-nous	-
20	8544957		Timer Knob Assembly				$ 41.86
21	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8271399		Top		Appelez-nous	-
25	W10080820		Screw, 8-18 X 5/16		Appelez-nous	-
26	8541780		Cap, End (l.h.)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 7.81
29	3400859		Screw, 8-18 X 7/32   (Replaces: W10080810)				$ 13.22
30	WP94614		Terminal   (Replaces: 94614)				$ 7.67
31	8575088		Panel, Control		Appelez-nous	-
32	8283287		Wire, Jumper (temperature)		Appelez-nous	-
33	W10110977		Wire, Ground		Appelez-nous	-
34	WP489464		Screw, 8-18 X 1/2   (Replaces: W10080700)			Immediately	$ 7.83
35	W10130935		Screw, 8-32 X 5/16		Appelez-nous	-
36	W10113937		Clip, Grounding				$ 10.83

    View Diagram in Separate Window       Print Part List
