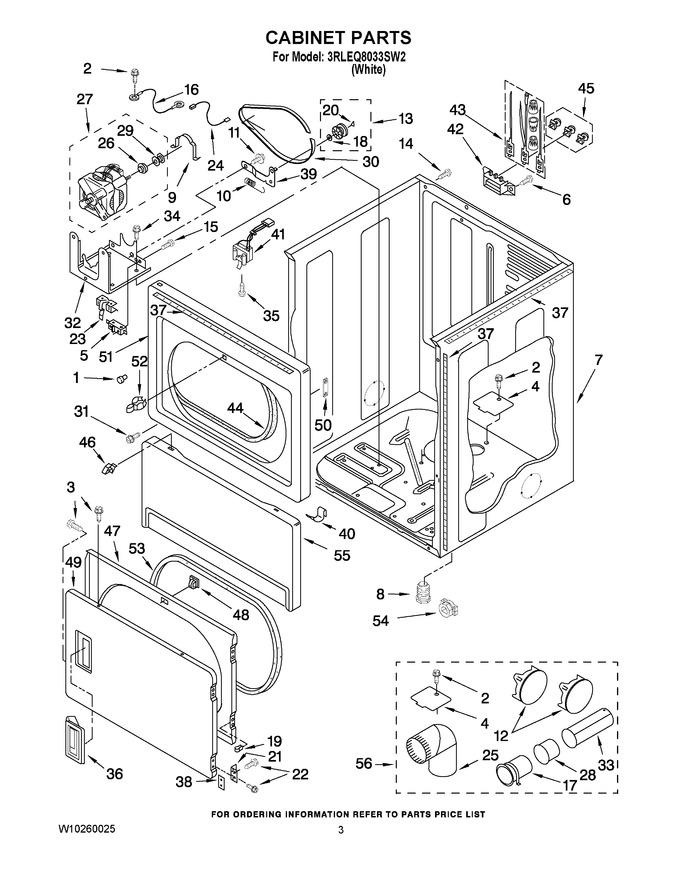

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 10.96
2	W10130935		Screw, 8-32 X 5/16		Appelez-nous	-
3	W10080300		Screw, 8-18 X 3/8		Appelez-nous	-
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 42.09
6	W10080710		Screw, 10-16 X 1/2		Appelez-nous	-
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	W10080670		Retainer, Idler		Appelez-nous	-
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
15	W10118188		Screw, 6-20 X 1 1/16		Appelez-nous	-
16	340025		Wire, Ground		Appelez-nous	-
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 3395532)				$ 91.38
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.19
19	3389249		Nut, Inner Door (4)		Appelez-nous	-
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge & Pin Assembly (2)   (Replaces: 3389247)				$ 81.41
22	W10080310		Screw, 8-18 X 1/2		Appelez-nous	-
23	W10854043		Lever, Snap Switch   (Replaces: W10083220)				$ 29.00
24	3394081		Wire, Belt Switch				$ 37.57
25	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 26.82
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: 3404470)				$ 238.86
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10891954		Screw, 8-18 X 3/8   (Replaces: W10080800)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
34	W10080760		Screw, 10-24 X 3/8		Appelez-nous	-
35	W10080540		Screw, 6-20 X 7/8		Appelez-nous	-
36	3389522		Handle, Door				$ 77.90
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 37.82
38	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
39	W10837240		Idler Bracket   (Replaces: W10118754)			Immediately	$ 35.78
40	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 55.64
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
43	279318		Terminal, Brass & Tinned (3) Includes Illus. 45			Immediately	$ 100.99
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: 3392563)				$ 287.02
48	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
49	W11663440		Door, Front   (Replaces: 3387872)				$ 259.37
50	W10191265		Plug, Hinge Screw				$ 44.28
51	W10193554		Upper Front Panel		Appelez-nous	-
52	W10080240		Strike, Door		Appelez-nous	-
53	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
54	W11704629		Clip, Strain Relief   (Replaces: 8316644)		Appelez-nous	-
55	WP3406797		Panel, Toe (includes Item. 1)   (Replaces: 697215)				$ 238.33
56	W10470674		Dryer Exhaust Key (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
