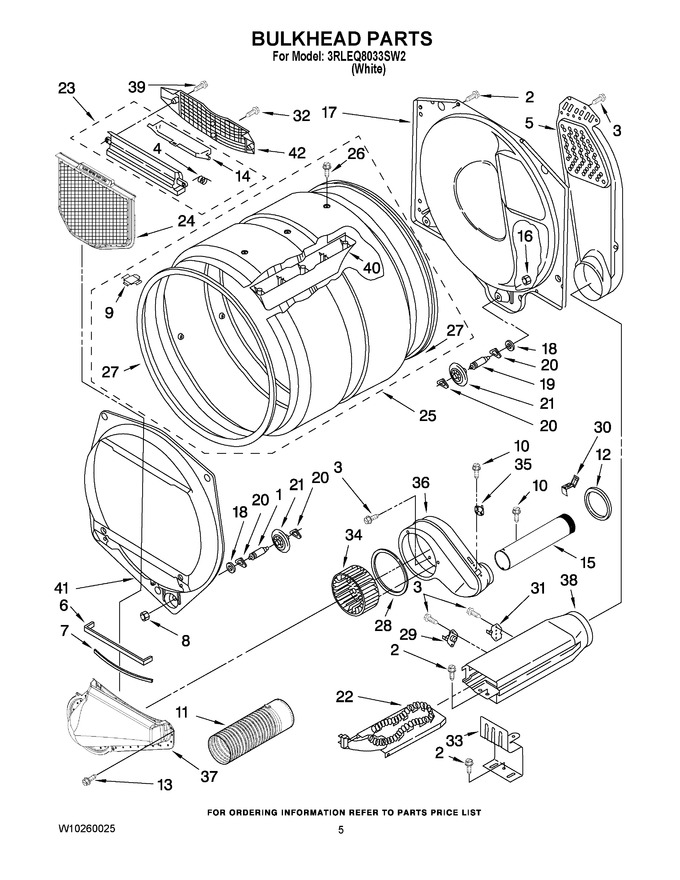

03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | W10130935 | Screw, 8-18 X 1/2 |
|
- | |||||
| 3 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 4 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 93.47 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 8.37 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 12.77 | |||||
| 9 | 8066086 | Drum, Hole Plug |
|
$ 11.29 | |||||
| 10 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 11 | 8318409 | Exhaust Duct (corrugated) |
|
- | |||||
| 12 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| 13 | W10080380 | Screw, 8-18 X 1/16 |
|
- | |||||
| 14 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 213.91 | ||||
| 15 | W10121166 | Exhaust Pipe |
|
- | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP3387749 | Heater Element (Replaces: 3387749) |
|
Immediately | $ 328.58 | ||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: 8528998) |
|
$ 458.60 | |||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 29 | WPW10167627 | Thermal Limiter (89° C) (Replaces: W10167627) |
|
$ 103.47 | |||||
| 30 | W11684573 | Clip-exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 31 | W10154212 | Thermal Cut-off (includes Illus. 29) (Replaces: W10141623) |
|
$ 122.66 | |||||
| 32 | W10080360 | Screw, 8-15 X 1/2 |
|
- | |||||
| 33 | 8066099 | Bracket, Heater (Replaces: W10119253) |
|
$ 26.81 | |||||
| 34 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 35 | WPW10168174 | Thermostat Internal Bias (Replaces: W10168174) |
|
$ 143.57 | |||||
| 36 | WP8544363 | Housing, Blower (Replaces: W10151271) |
|
$ 160.26 | |||||
| 37 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 217.48 | |||||
| 38 | W10802681 | Heater Box (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 39 | W10080640 | Screw, 10-16 X 1/2 |
|
- | |||||
| 40 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 41 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 218.43 | |||||
| 42 | W11086603 | Grill, Outlet (Replaces: 8299979) |
|
Immediately | $ 36.90 |
