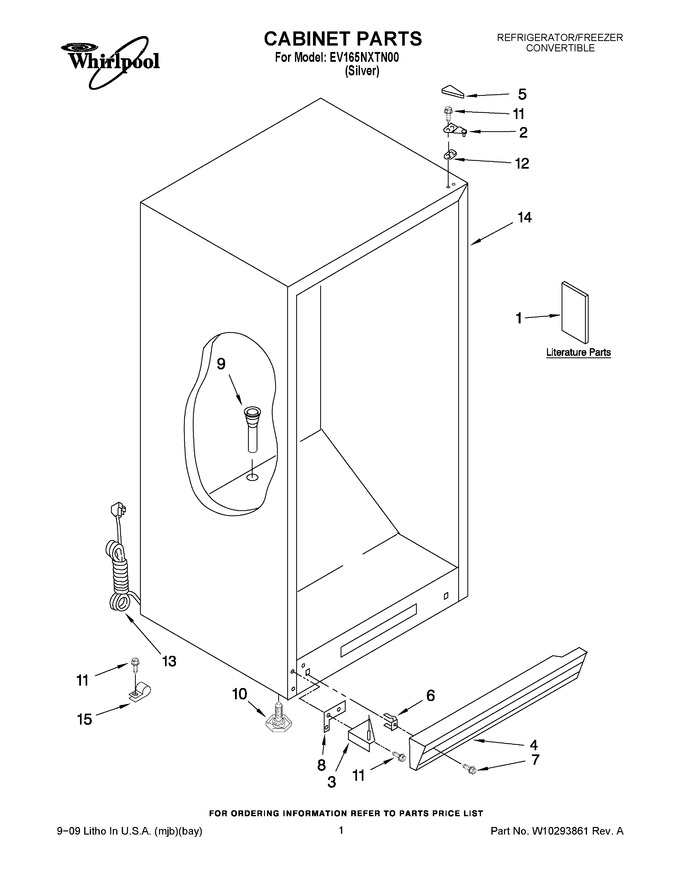

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296404		Energy Guide/tag		Appelez-nous	-
1	W10128851		Owners Manual		Appelez-nous	-
2	W10260541		Hinge, Top				$ 51.02
3	W10260542		Hinge, Bottom		Appelez-nous	-
4	W10271517		Grille (white (includes 6 & 7))		Appelez-nous	-
5	W10254179		Cover, Hinge (white)		Appelez-nous	-
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4357243)				$ 8.18
8	4390489		Shim, Bottom				$ 7.30
9	W10164544		Grommet, Drain		Appelez-nous	-
10	WP3-82710-001		Leg, Leveller   (Replaces: W10177676)			Immediately	$ 20.32
11	W10204670		Screw		Appelez-nous	-
12	4390489		Shim, Hinge				$ 7.30
13	8210403		Power Cord		Appelez-nous	-
14	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
15	488946		Clamp   (Replaces: 4356643)				$ 21.47
