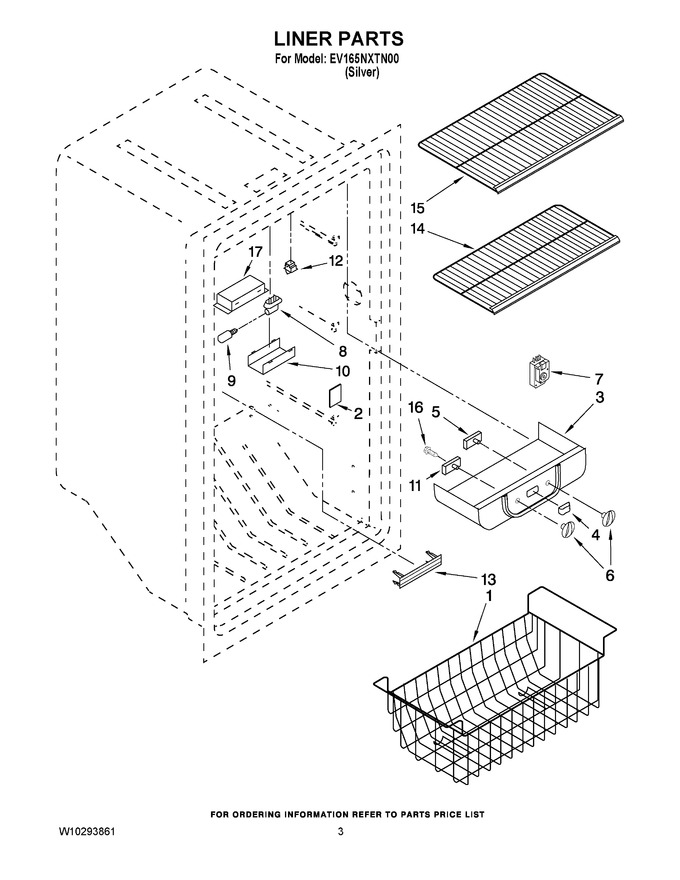

02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390621 | Basket |
|
- | |||||
| 2 | 1-60123-001 | Cover, Icemaker Hole (Replaces: 4390649) |
|
$ 80.09 | |||||
| 3 | 8210377 | Housing, Control |
|
- | |||||
| 4 | 8210203 | Switch, Control (illuminated) |
|
- | |||||
| 5 | 8210208 | Thermostat (freezer) |
|
- | |||||
| 6 | 8210206 | Knob, Thermostat |
|
- | |||||
| 7 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 199.14 | ||||
| 8 | WP3-82393-001 | Socket, Lamp (Replaces: 8210350) |
|
$ 112.73 | |||||
| 9 | W11679940 | Bulb (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 10 | 4390743 | Light Shield |
|
- | |||||
| 11 | 8210207 | Thermostat (refrigerator) |
|
$ 110.22 | |||||
| 12 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 39.09 | ||||
| 13 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 13.50 | |||||
| 14 | 8210347 | Shelf, Lower (2) |
|
- | |||||
| 15 | 4-82315-001 | Shelf, Top (1) (Replaces: 8210346) |
|
$ 352.45 | |||||
| 16 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 14.72 | ||||
| 17 | 4390744 | Bracket, Light |
|
- |
