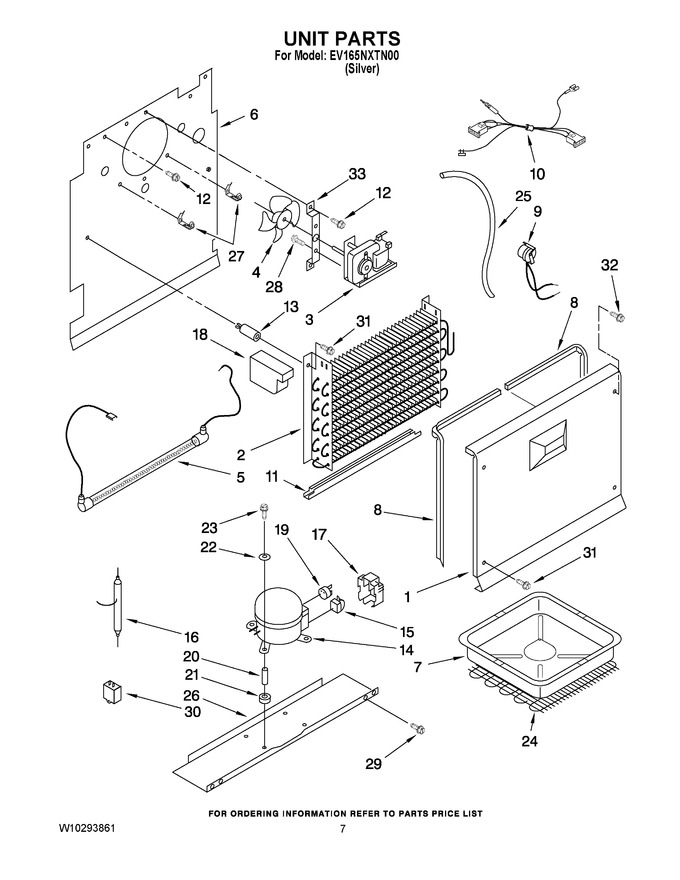

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390662 | Cover, Evaporator |
|
$ 147.35 | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4357244) |
|
$ 449.41 | |||||
| 3 | WP3-60336-001 | Fan Motor (Replaces: 4390914) |
|
Immediately | $ 339.78 | ||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4390912) |
|
Immediately | $ 10.55 | ||||
| 5 | WP3-80405-003 | Heater, Defrost (Replaces: W10164625) |
|
$ 210.29 | |||||
| 6 | 4357123 | Plate, Evaporator Mount |
|
- | |||||
| 7 | W10164623 | Pan, Drain |
|
- | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right) |
|
$ 250.95 | |||||
| 8 | 4390664 | Gasket, Cover Evaporator (left) |
|
$ 93.57 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 8210253) |
|
Immediately | $ 129.87 | ||||
| 10 | 4-81785-001 | Harness, Fan (Replaces: 8210426) |
|
- | |||||
| 11 | W10164624 | Shield, Heater |
|
- | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 66.41 | |||||
| 13 | 4357020 | Grommet |
|
- | |||||
| 14 | W10309989 | Compressor (includes Items 15,17,19, & 21) (Replaces: 4390734) |
|
Immediately | $ 689.81 | ||||
| 15 | 4356738 | Relay |
|
$ 53.17 | |||||
| 16 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 10.71 | ||||
| 17 | 4356777 | Cover |
|
- | |||||
| 18 | 1-80252-101 | Block Foam (Replaces: 8210261) |
|
$ 6.84 | |||||
| 19 | WP2214067 | Overload (Replaces: 4390624) |
|
$ 138.24 | |||||
| 20 | 4356846 | Sleeve |
|
$ 15.00 | |||||
| 21 | 4356335 | Grommet, Compressor |
|
- | |||||
| 22 | 4356847 | Washer |
|
- | |||||
| 23 | 8210220 | Screw, Compressor |
|
- | |||||
| 24 | W10451951 | Condenser (Replaces: 8210248) |
|
$ 300.73 | |||||
| 25 | 4357263 | Exchanger, Heat |
|
$ 123.66 | |||||
| 26 | W10260544 | Pan, Compressor |
|
- | |||||
| 27 | 4356952 | Clip, Thermostat |
|
- | |||||
| 28 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 9.26 | |||||
| 29 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 8.33 | |||||
| 30 | 8210273 | Capacitor |
|
$ 55.86 | |||||
| 31 | WP3-24004-109 | Screw (Replaces: 4357110) |
|
$ 9.14 | |||||
| 32 | WP489478 | Screw (Replaces: 4357243) |
|
$ 8.18 | |||||
| 33 | 2-80028-101 | Bracket (Replaces: 4357129) |
|
$ 98.68 | |||||
| NI | N/P | Refrigerant Charge (5.8 Oz. (r-134a)) |
|
- |
