SELECT A DIAGRAM

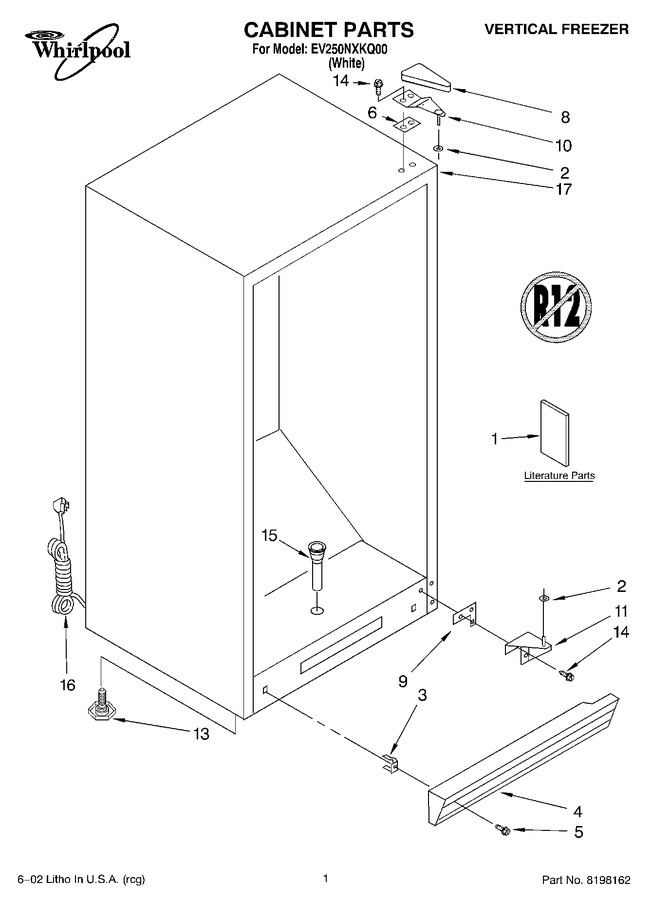

01 - Cabinet, Literature
02 - Liner
03 - Unit
04 - Door, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4390855 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT4390678 | Literature Parts (owners Manual) |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 11.50 | ||||
| 4 | 4390804 | Grille |
|
- | |||||
| 5 | 4357139 | Screw |
|
$ 6.57 | |||||
| 6 | 4390489 | Shim, Hinge |
|
$ 7.30 | |||||
| 8 | 4357121 | Cover, Hinge |
|
- | |||||
| 9 | 4356828 | Shim, Bottom |
|
$ 12.40 | |||||
| 10 | 4357104 | Top, Hinge |
|
- | |||||
| 11 | 4357050 | Bottom, Hinge |
|
- | |||||
| 13 | W11117769 | Leg, Leveller (Replaces: 4357045) |
|
Immediately | $ 19.37 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 15 | 4357268 | Grommet, Drain |
|
- | |||||
| 16 | 4390693 | Power Cord |
|
- | |||||
| 17 | N/A | Cabinet (not A Serviceable Part) |
|
- |
