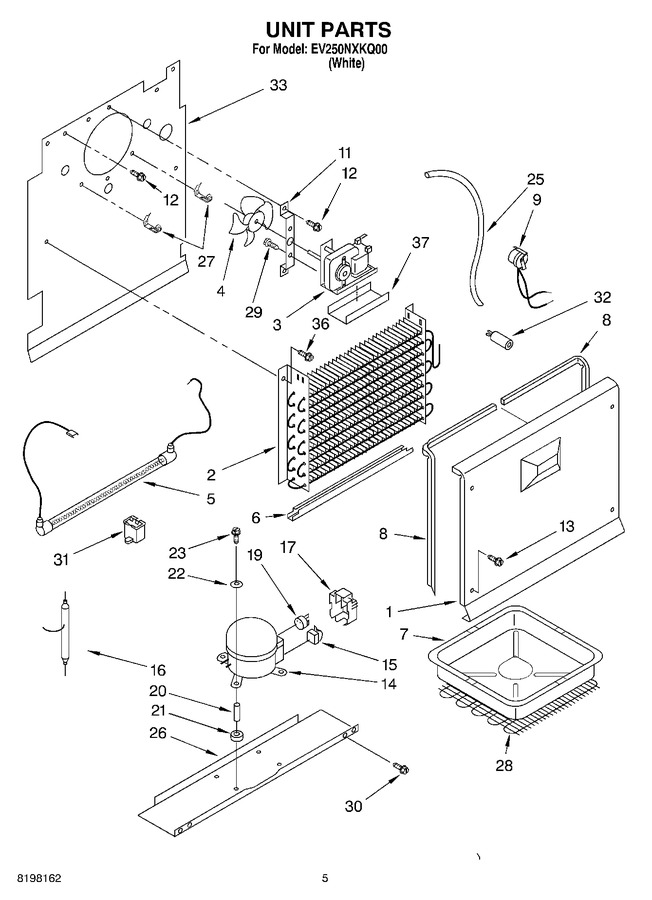

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390853		Cover, Evaporator		Appelez-nous	-
2	WP4390862		Evaporator   (Replaces: 4390862)				$ 272.82
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 10.55
5	WP3-82089-001		Heater, Defrost   (Replaces: 4390861)				$ 162.26
6	4390860		Shield Heater		Appelez-nous	-
7	4390675		Drain Pan				$ 129.57
8	4390663		Gasket, Evaporator Cover (right)				$ 250.95
8	4390664		Gasket, Evaporator Cover (left)				$ 93.57
9	4390863		Bi-metal Defrost				$ 39.46
11	2-80028-101		Bracket, Motor   (Replaces: 4357256)				$ 98.68
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
13	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 9.14
14	W10309995		Compressor (includes Items 15, 16, 17, 18 & 19)   (Replaces: 4390806)				$ 704.53
15	4356738		Relay				$ 53.17
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
17	4356777		Cover		Appelez-nous	-
19	4390808		Overload		Appelez-nous	-
20	4356846		Sleeve				$ 15.00
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4356852		Screw, Compressor				$ 6.57
25	4390864		Heat, Exchanger		Appelez-nous	-
26	4390865		Compressor Pan		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
28	4390859		Condenser		Appelez-nous	-
29	WP3400094		Screw   (Replaces: 4356970)				$ 9.26
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
31	3-35956-013		Capacitor   (Replaces: 4390674)				$ 121.12
32	4357020		Grommet		Appelez-nous	-
33	4390858		Plate, Evaporator Mount		Appelez-nous	-
36	WP489478		Screw   (Replaces: 4357243)				$ 8.18
37	4357128		Shield, Motor				$ 114.21
