SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Unit


04 - Door, Optional

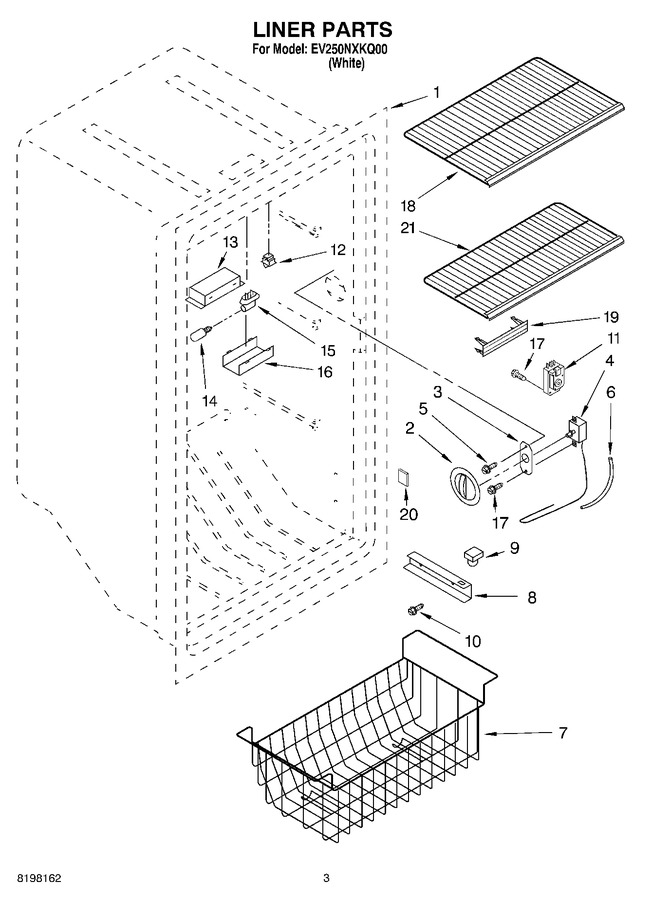

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4390619		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 15.00
4	4390849		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
7	4390799		Basket (upper Basket)		Appelez-nous	-
7	4390793		Basket (lower Basket)		Appelez-nous	-
8	4390794		Support, Basket (right)		Appelez-nous	-
8	4390795		Support, Basket (left)		Appelez-nous	-
9	4390796		Stop, Basket		Appelez-nous	-
10	4390798		Screw, Support (1 1/2``)		Appelez-nous	-
10	WP3-24004-109		Screw, Support (3/4``)   (Replaces: 4390797)				$ 9.14
11	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
12	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
13	4390630		Bracket		Appelez-nous	-
14	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
15	4390644		Socket, Light		Appelez-nous	-
16	4390848		Shield, Light		Appelez-nous	-
17	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.72
18	WP4390850		Wire Shelf, Upper   (Replaces: 4390850)				$ 260.17
19	4390854		Vent Plug		Appelez-nous	-
20	4390852		Seal, Block		Appelez-nous	-
21	4390851		Wire Shelf, Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
