SELECT A DIAGRAM

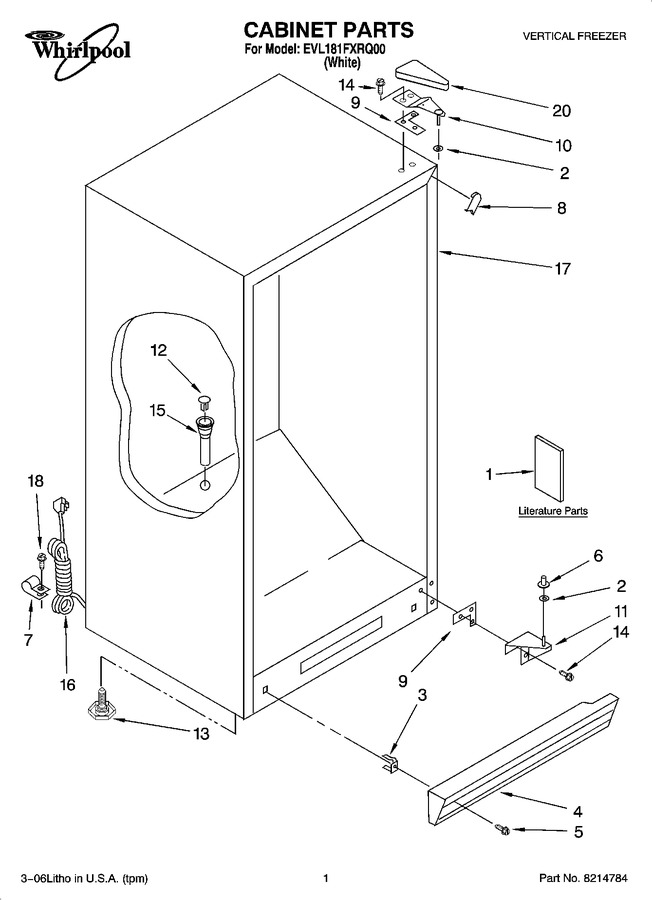

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210432		Owners Manual		Appelez-nous	-
1	8210405		Energy Label/tag		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4390520)				$ 10.57
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.95
4	WP4-60461-005		Grille   (Replaces: 8210290)				$ 111.89
5	4357139		Screw				$ 6.57
6	4390659		Bushing, Hinge		Appelez-nous	-
7	488946		Clamp, Tube   (Replaces: 4356643)				$ 20.45
8	8210227		Corner Filler (2)		Appelez-nous	-
9	4390489		Shim				$ 6.95
10	4390673		Hinge, Top		Appelez-nous	-
11	8210238		Hinge, Bottom				$ 42.53
12	4357019		Drain Plug		Appelez-nous	-
13	W11117769		Leg, Leveler   (Replaces: 4390866)			Immediately	$ 18.45
14	WP8204624		Screw   (Replaces: 4356830)				$ 16.65
15	4357269		Grommet, Drain		Appelez-nous	-
16	8210403		Cord, Power		Appelez-nous	-
18	4357139		Screw				$ 6.57
20	4357279		Hinge Cover (white)				$ 46.56

    View Diagram in Separate Window       Print Part List
