01 - Cabinet Parts


02 - Liner Parts

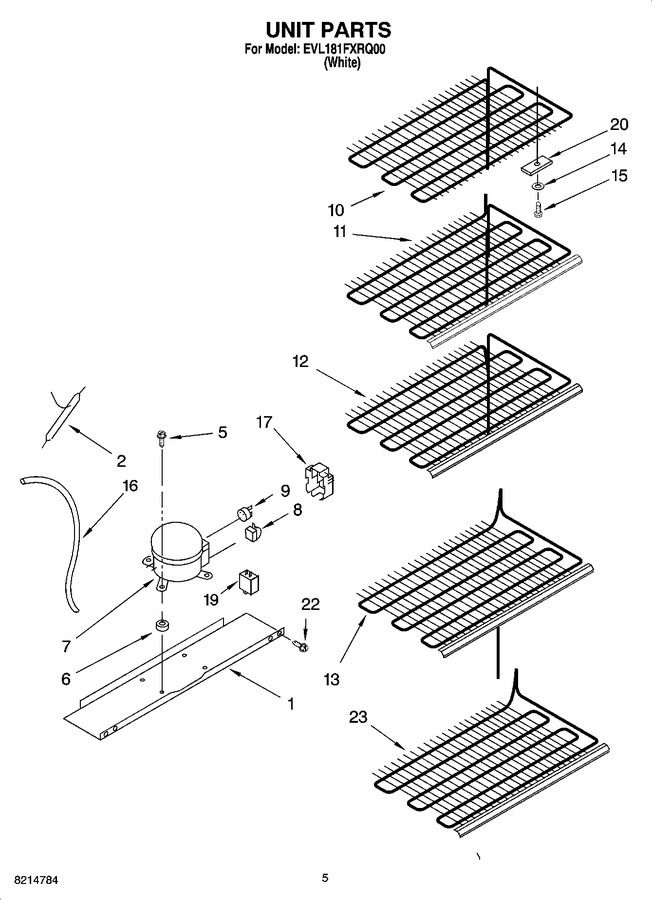

03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357257		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
5	4356852		Screw, Compressor Mounting				$ 6.57
6	4356335		Grommet		Appelez-nous	-
7	W10309990		Compressor (includes Items 6, 8, 9, & 17)   (Replaces: 4390792)			Immediately	$ 632.81
8	4356738		Relay				$ 53.17
9	WP2149959		Overload   (Replaces: 4390896)				$ 133.39
10	4-82416-001		Evaporator, Top   (Replaces: 8210407)		Appelez-nous	-
11	4-82416-001		Evaporator Shelf   (Replaces: 8210408)		Appelez-nous	-
12	4-82416-001		Evaporator Shelf   (Replaces: 8210409)		Appelez-nous	-
13	4-82416-001		Evaporator Shelf   (Replaces: 8210410)		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 4357223)				$ 8.05
16	4390881		Heat Exchanger		Appelez-nous	-
17	4356777		Cover		Appelez-nous	-
19	3-35956-013		Capacitor   (Replaces: 8210224)				$ 115.35
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.78
23	4-82416-001		Evaporator Shelf, Bottom   (Replaces: 8210411)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
