SELECT A DIAGRAM

01 - Cabinet Parts

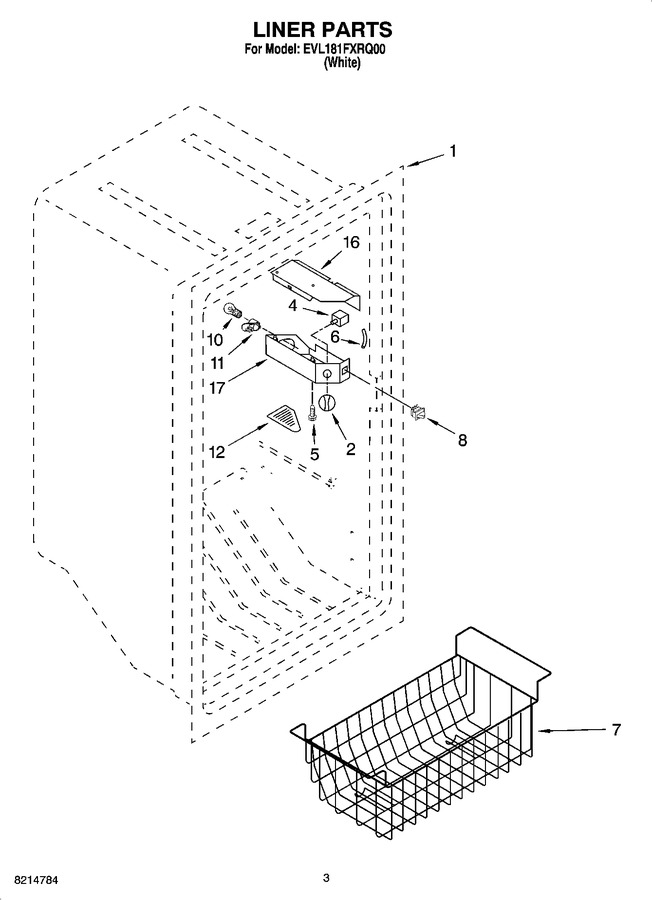

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 28.67
4	WP4-83053-001		Thermostat   (Replaces: 8210395)				$ 242.73
5	4390798		Screw		Appelez-nous	-
6	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 7.95
7	4390621		Basket		Appelez-nous	-
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 37.23
10	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
11	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 107.36
12	8210349		Lens, Light				$ 33.01
16	8210351		Shield, Light				$ 42.03
17	8210406		Box, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
