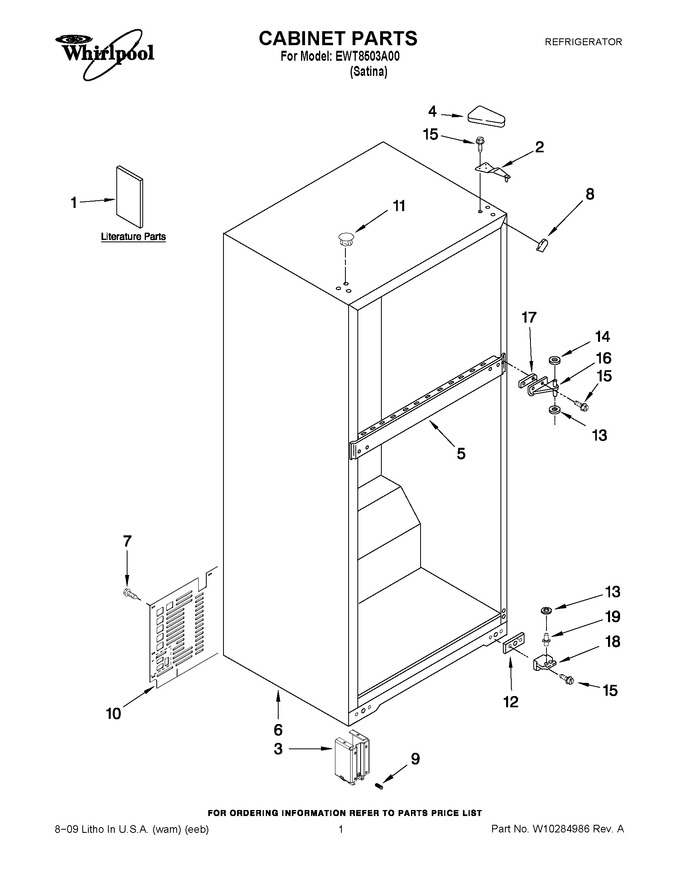

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Dispenser Front Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10211589 | Energy Label |
|
- | |||||
| 1 | W10183917 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./frz. |
|
$ 30.30 | |||||
| 2 | 2321179 | Hinge (top) |
|
- | |||||
| 3 | 2264963 | Roller-front |
|
- | |||||
| 4 | 2213360D | Cover, Hinge |
|
- | |||||
| 5 | N/P | Center Rail (not A Serviceable Part) |
|
- | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 8 | 2166003D | Corner Filler |
|
- | |||||
| 9 | 2222100 | Screw, Leveler |
|
$ 104.80 | |||||
| 10 | 2213762 | Cover-unit |
|
- | |||||
| 11 | WP2183998 | Hole Plug (Replaces: 2183998) |
|
$ 19.01 | |||||
| 12 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 13 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 14 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 18 | WP2325482 | Hinge Butt (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 19 | WP2325483 | Hinge-pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 7.55 |
