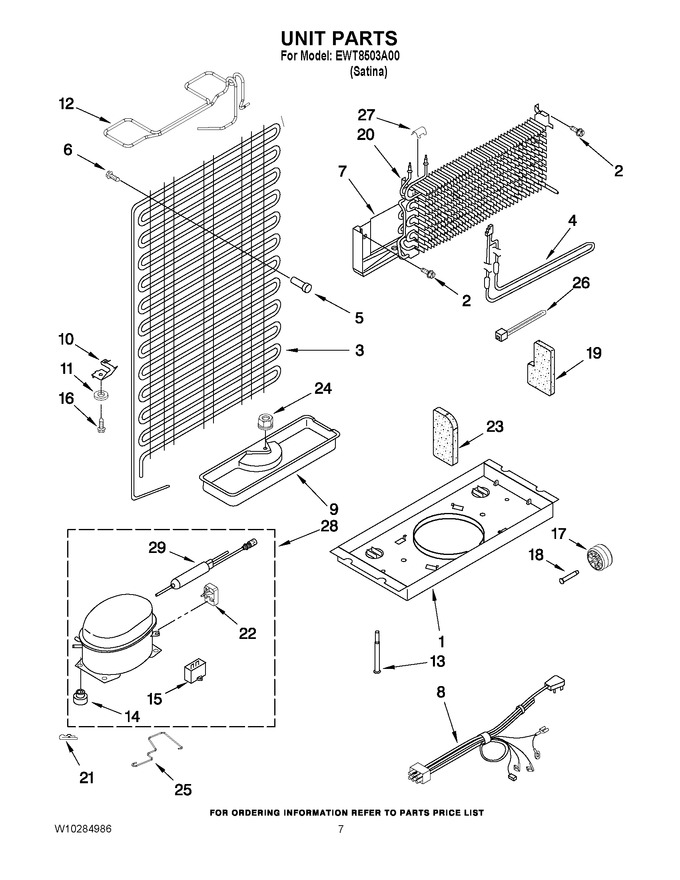

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 310.04 | |||||
| 4 | WP2167357 | Heater, Defrost (Replaces: 2167357) |
|
$ 165.14 | |||||
| 5 | 2258452 | Spacer, Condenser |
|
- | |||||
| 6 | 8533892 | Screw |
|
- | |||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W10183888 | Wire Assy. Unit |
|
- | |||||
| 9 | 2201801 | Evaporating Tray |
|
$ 78.52 | |||||
| 10 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 11 | 8526417 | Washer (Replaces: VS611) |
|
$ 14.64 | |||||
| 12 | W10245438 | Tube, Discharge (incl. Pre-cooler) |
|
- | |||||
| 13 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 8.36 | |||||
| 14 | 876811 | Grommet (service) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | 2321245 | Capacitor (production) (Replaces: 2254217) |
|
- | |||||
| 15 | 2321245 | Capacitor (service) |
|
- | |||||
| 16 | 8533892 | Screw |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 21 | 24364001 | Clip, Compressor |
|
- | |||||
| 22 | 2321301 | Start-device, Combination (start Relay And Overload) (service) |
|
- | |||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 2263628 | Clip, Retainer |
|
- | |||||
| 26 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 27 | 9791833 | Clip, Evaporator |
|
- | |||||
| 28 | W10170300 | Compressor (includes Items 14,15, 22, & 29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2321299) |
|
- | |||||
| 29 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. R134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
