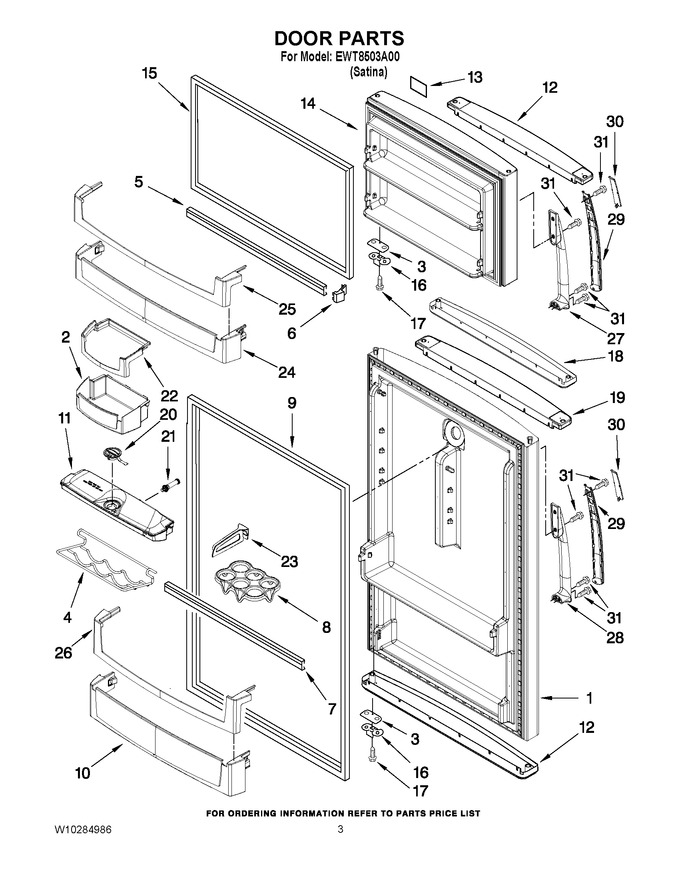

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316415L		Refrigerator Door (includes Illus. 9) (satina)		Appelez-nous	-
2	2324274		Bin, Door		Appelez-nous	-
3	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.55
4	2265630		Can Rack		Appelez-nous	-
5	2324271		Trim, Door Shelf		Appelez-nous	-
6	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
7	W10245587		Trim, Door Shelf		Appelez-nous	-
8	2265630		Egg Rack		Appelez-nous	-
9	WP2319264W		Door Gasket, Magnetic   (Replaces: 2264727)			Immediately	$ 329.08
10	2324269		Trim, Door		Appelez-nous	-
11	W10138779A		Water Tank Assy   (Replaces: W10138779)				$ 80.25
12	W10198760		Endcap, Rc & Fc		Appelez-nous	-
13	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
14	2323817L		Freezer Door (includes Illus. 15) (satina)		Appelez-nous	-
15	WP2319263W		Door Gasket, Magnetic   (Replaces: 2264726)			Immediately	$ 151.03
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
17	W10276642		Screw   (Replaces: 8533904)				$ 6.41
18	W10198761		Endcap, Fc		Appelez-nous	-
19	W10198759		Endcap, Rc		Appelez-nous	-
20	W10138779A		Lid, Water Tank   (Replaces: 2328518)				$ 80.25
21	2328499A		Valve, Water Tank   (Replaces: 2328499)				$ 31.95
22	2264920		Collar, Bin-rc		Appelez-nous	-
23	2325507		Bottle Retainer		Appelez-nous	-
24	2324265		Trivet (fc)		Appelez-nous	-
25	2264943		Collar-trivet-fc		Appelez-nous	-
26	2264930		Collar-trivet-rc		Appelez-nous	-
27	2319301D		Handle-fc		Appelez-nous	-
28	2319300D		Handle-rc		Appelez-nous	-
29	2319302D		Cap-handle Rc & Fc		Appelez-nous	-
30	2319303C		Insert-cap-handle		Appelez-nous	-
31	WP489491		Screw   (Replaces: W10002730)				$ 7.30
