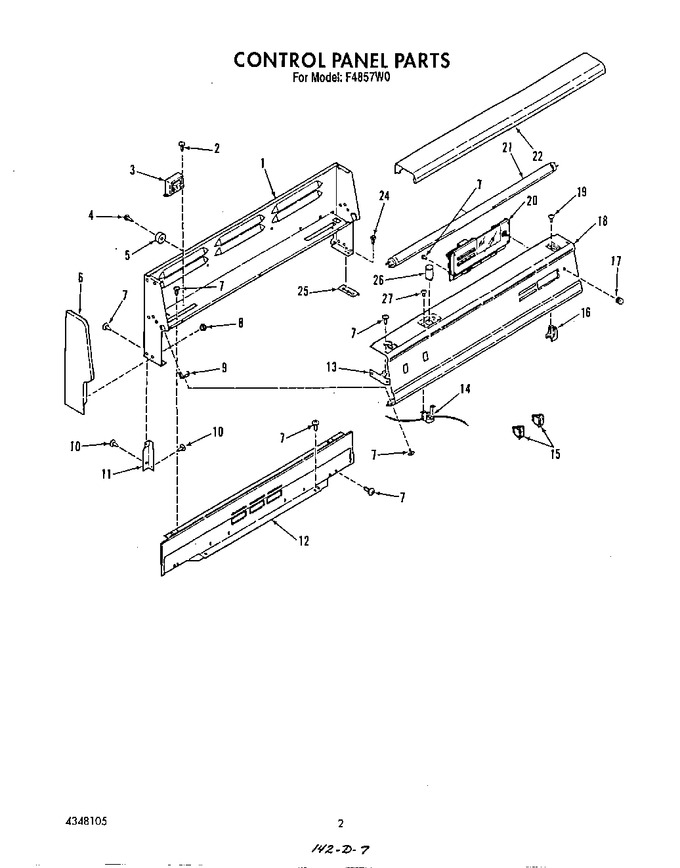

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338271		Rear Cover		Appelez-nous	-
2	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
3	4323673		Ballast		Appelez-nous	-
4	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
5	4337434		Bumper		Appelez-nous	-
6	4337047		End Cap (right)		Appelez-nous	-
6	4337048		End Cap (left)		Appelez-nous	-
7	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
8	WP308499		Nut, Pal   (Replaces: 4337577)				$ 6.57
9	4338226		Clip, Backguard		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4337181		Support, Backguard (left)		Appelez-nous	-
11	4337180		Support, Backguard (right)		Appelez-nous	-
12	4337853		Backguard Front		Appelez-nous	-
13	4337555		Bracket, Backguard		Appelez-nous	-
14	4337372		Starter Base		Appelez-nous	-
15	WP4314961		Switch   (Replaces: 4337275)				$ 84.56
16	4337139		Holder, Lamp		Appelez-nous	-
17	4338513		Knob, Clock/oven Control		Appelez-nous	-
18	4337602		Control Panel		Appelez-nous	-
19	WP486754		Screw, No.6-32 X 3/8   (Replaces: 4323581)				$ 7.21
20	4342994		Control, Clock-oven, W/lens		Appelez-nous	-
21	WP95292		Lamp, Fluorescent   (Replaces: 4337142)			Immediately	$ 121.45
22	4337141		Panel, Cover		Appelez-nous	-
24	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
25	4337625		Cleat		Appelez-nous	-
26	4337125		Starter, Lamp		Appelez-nous	-
27	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-
	4337553		Xlens, Clock/oven Control		Appelez-nous	-
