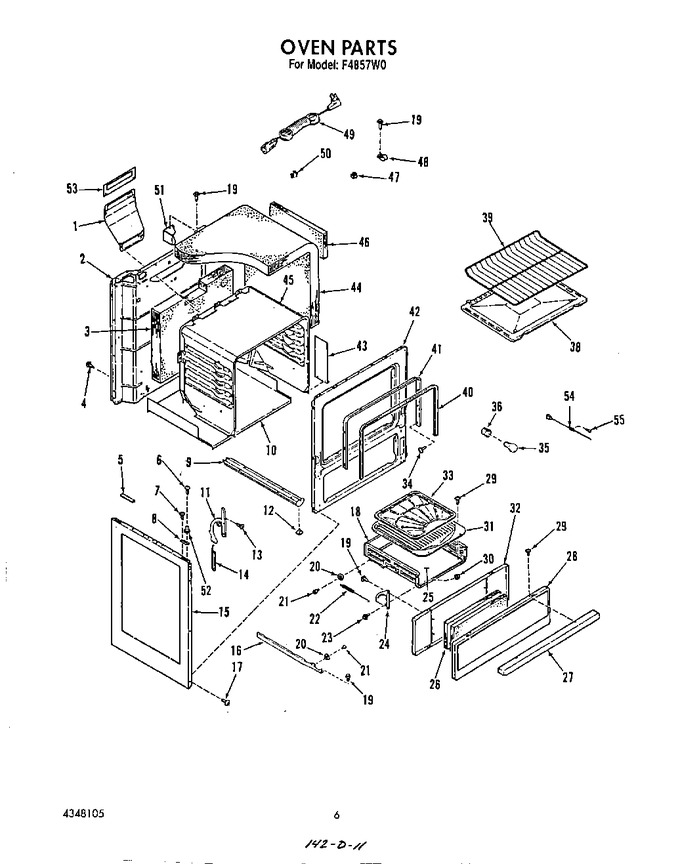

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335162		Deflector		Appelez-nous	-
2	4335165		Cover, Rear		Appelez-nous	-
3	4354817		Insulation		Appelez-nous	-
4	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
5	4337485		Spacer		Appelez-nous	-
6	4335220		Screw No.10-32x7/8		Appelez-nous	-
7	4328072		Screw No.6-32x5/16		Appelez-nous	-
8	4337184		Support, Side (left)		Appelez-nous	-
8	4337183		Support, Side (right)		Appelez-nous	-
9	4337332		Base W/levelers Rt/lt		Appelez-nous	-
10	4335153		Bottom		Appelez-nous	-
11	4336784		Hinge-door (left)				$ 80.99
11	4336783		Hinge-door (right)				$ 44.64
12	4334800		Levelers, Leg (4)		Appelez-nous	-
13	4336631		Screw		Appelez-nous	-
14	4337297		Spring, Door		Appelez-nous	-
15	4337593		Side Panel (almond)		Appelez-nous	-
15	4337591		Side Panel (white)		Appelez-nous	-
16	4327691		Guide, Broiler Drawer (inc 20,21) (right)		Appelez-nous	-
16	4327690		Guide, Broiler Drawer (inc 20,21) (left)		Appelez-nous	-
17	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
18	4336583		Broiler Drawer (inc. 20,21)		Appelez-nous	-
19	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
20	4323378		Roller		Appelez-nous	-
21	4323405		Rivet		Appelez-nous	-
22	4335295		Spring, Drawer		Appelez-nous	-
23	4335999		Bolt, Shoulder		Appelez-nous	-
24	4335296		Hinge, Drawer (right)		Appelez-nous	-
24	4335297		Hinge, Drawer (left)		Appelez-nous	-
25	4336575		Drawer Bottom		Appelez-nous	-
26	4327653		Insulation		Appelez-nous	-
27	4336754		Handle		Appelez-nous	-
28	4336733		Broiler Door Panel (almond)		Appelez-nous	-
28	4336732		Broiler Door Panel (white)		Appelez-nous	-
29	4332521		Screw No.10-32x1/2		Appelez-nous	-
30	W10080180		Hex Nut No.10-24   (Replaces: 4351952)				$ 12.74
31	4336603		Pan, Broiler		Appelez-nous	-
32	4336584		Lining, Broiler Door		Appelez-nous	-
33	4336598		Grid, Broiler Pan		Appelez-nous	-
34	4323884		Screw No.10x1/2		Appelez-nous	-
35	8009		Lamp   (Replaces: 4324154)			Immediately	$ 16.80
36	W10856866		Holder, Lamp   (Replaces: 4352753)				$ 6.80
38	4335164		Bottom, Oven		Appelez-nous	-
39	4354754		Rack, Oven		Appelez-nous	-
40	4354751		Seal, Oven Door		Appelez-nous	-
41	4335426		Retainer, Door Seal		Appelez-nous	-
42	4337112		Frame, Front		Appelez-nous	-
43	4335889		Retainer, Insulation		Appelez-nous	-
44	4354750		Insulation, Top And Sides		Appelez-nous	-
45	4336910		Oven		Appelez-nous	-
46	4327653		Insulation		Appelez-nous	-
47	4324656		Bushing		Appelez-nous	-
48	4323987		Clip		Appelez-nous	-
49	4351709		Power Cord		Appelez-nous	-
50	4324642		Disconnect		Appelez-nous	-
51	4337219		Cover, Wire		Appelez-nous	-
52	4337082		Strike		Appelez-nous	-
53	4336020		Insulation		Appelez-nous	-
54	4338291		Sensor		Appelez-nous	-
55	4327216		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
