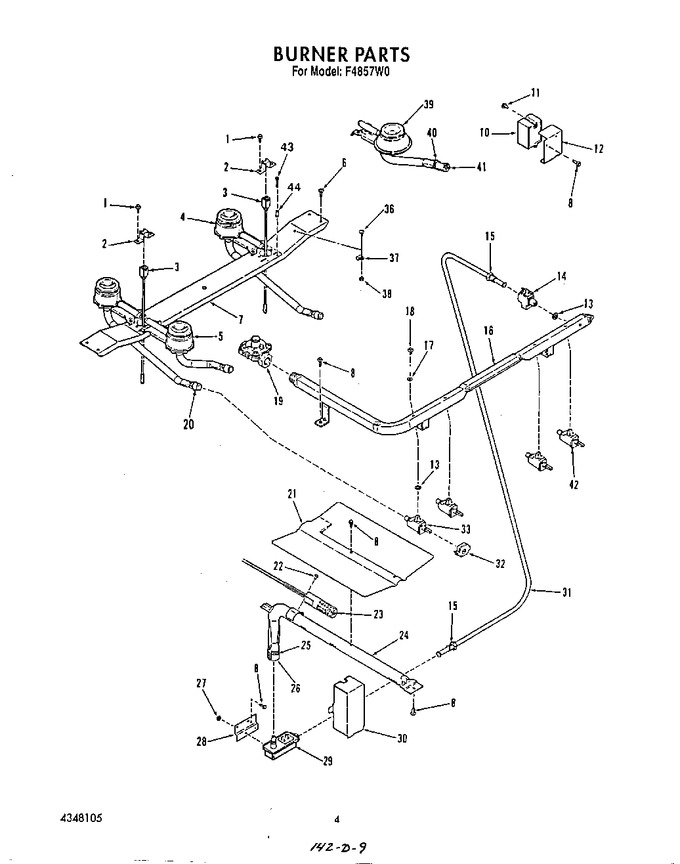

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
2	4331307		Bracket, Igniter		Appelez-nous	-
3	4331688		Electrode (right)		Appelez-nous	-
3	4354924		Electrode (left)		Appelez-nous	-
4	4336922		Burner, Rear Lt/rt		Appelez-nous	-
5	4336921		Burner, Lt Front		Appelez-nous	-
6	4335339		Screw No.6-32x3/8		Appelez-nous	-
7	4337013		Support, Top Burner		Appelez-nous	-
8	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
10	4333260		Spark Igniter Module		Appelez-nous	-
11	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
12	4332158		Bracket, Spark Module		Appelez-nous	-
13	4331665		Seal, Valve		Appelez-nous	-
14	4335080		Valve, Shut Off		Appelez-nous	-
15	4351421		Inverted Nut, 3/8		Appelez-nous	-
16	4337088		Manifold		Appelez-nous	-
17	4331164		Seal (for No.18)		Appelez-nous	-
18	4331097		Screw (for No.33)		Appelez-nous	-
19	4334271		Pressure Regulator		Appelez-nous	-
20	4335197		Air Shutter		Appelez-nous	-
21	4336021		Baffle, Burner		Appelez-nous	-
22	4323953		Screw No.10-32x1/4		Appelez-nous	-
23	4342528		Igniter, Oven   (Replaces: 4338008)			Immediately	$ 98.63
24	4336511		Burner Assembly, (inc. 21,25,26)		Appelez-nous	-
25	4331502		Screw, Adjustment		Appelez-nous	-
26	4331501		Shutter, Air		Appelez-nous	-
27	4324855		Hex Nut, No.6-32		Appelez-nous	-
28	4327660		Bracket, Control Valve		Appelez-nous	-
29	4333470		Control Valve		Appelez-nous	-
30	4335168		Cover, Control Valve		Appelez-nous	-
31	4332282		Tubing 3/8``, (inc. No.15)		Appelez-nous	-
32	4330739		Switch, Gas Valve				$ 57.26
33	4336715		Gas Valve		Appelez-nous	-
36	4342637		Screw, No.8-32 X 3/8		Appelez-nous	-
37	4323987		Clip		Appelez-nous	-
38	WP488130		Nut   (Replaces: 4325189)				$ 6.59
39	4342927		Burner, Rt Front, (inc. 40, 41)		Appelez-nous	-
40	4328513		Screw, Adjustment		Appelez-nous	-
41	4342928		Air Shutter		Appelez-nous	-
42	4338399		Gas Valve (inc 18)		Appelez-nous	-
43	4335220		Screw No.6-32x7/8		Appelez-nous	-
44	4337565		Eyelet		Appelez-nous	-
