SELECT A DIAGRAM

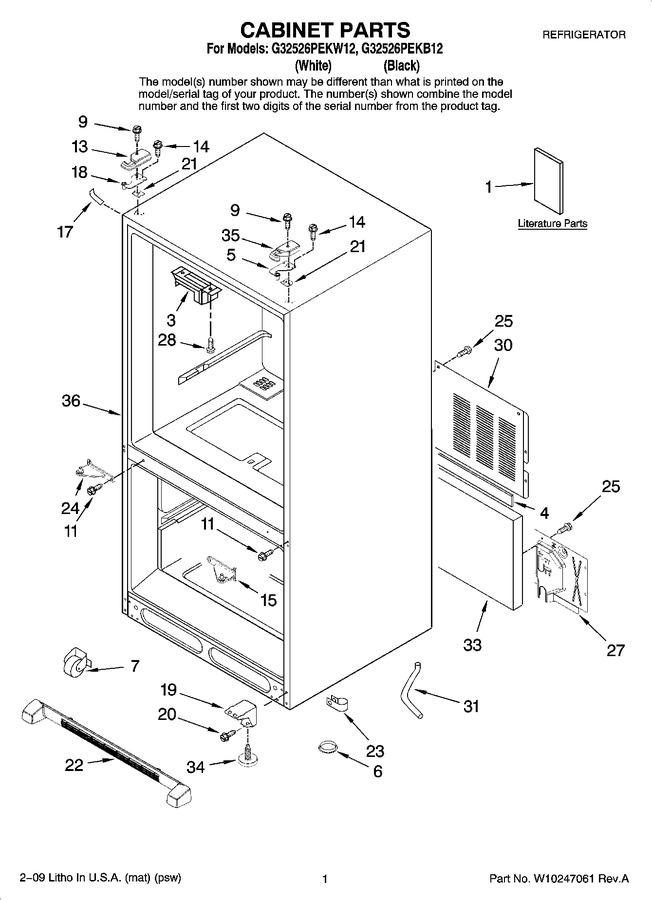

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827959		Tech Sheet		Appelez-nous	-
1	12828189		Owners Manual		Appelez-nous	-
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 44.89
6	A3076901		Plug-button				$ 5.70
7	12580303		Roller Assembly		Appelez-nous	-
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.02
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
13	12684201W		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.88
15	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000002ED)				$ 86.64
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
17	12587703W		Cover, Corner White				$ 21.81
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 86.75
19	12906303WD		Bracket, Foot (2)   (Replaces: 12906303ED)				$ 84.36
20	67006564		Screw			Immediately	$ 7.69
21	8208257		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 147.21
22	WPW10534154		Grille, Toe (white)   (Replaces: 67006377)				$ 146.34
23	67001067		Clip, Drain Tube				$ 9.20
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000001ED)				$ 86.64
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
25	67006425		Screw (10)			Immediately	$ 6.95
27	12479807		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.61
30	12575101ED		Cover, Unit		Appelez-nous	-
31	67001066		Tube, Drain				$ 55.82
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
35	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
35	12684202B		Cover, Right Hinge (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
