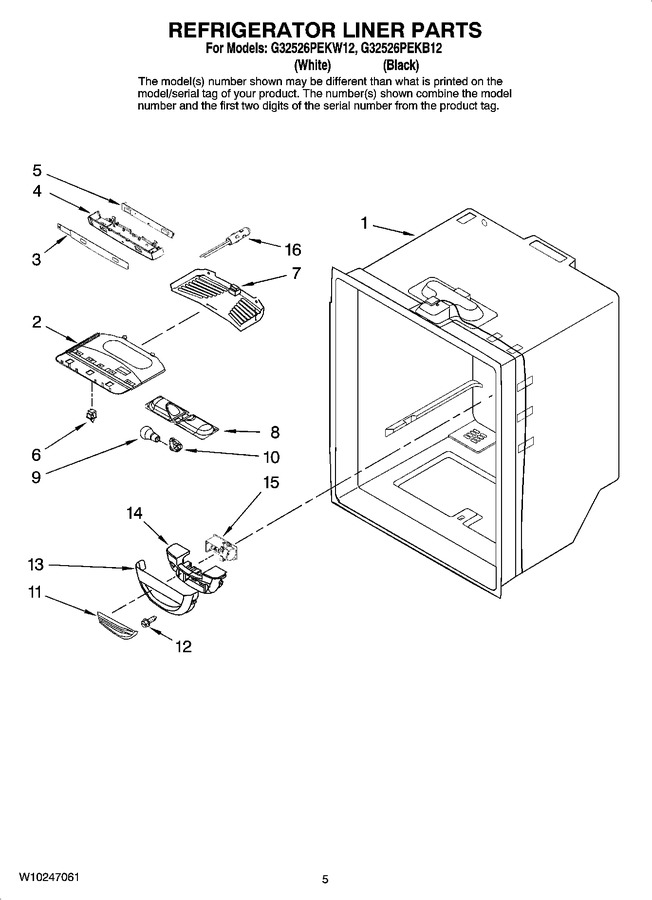

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 67004078 | Bracket, Control And Lights |
|
- | |||||
| 3 | 67005055 | Keyboard |
|
- | |||||
| 4 | WPW10464769 | Housing, Control (Replaces: 67003898) |
|
Immediately | $ 108.34 | ||||
| 5 | WPW10708492 | Board, Control (Replaces: 12784416) |
|
$ 253.02 | |||||
| 6 | W11384469 | Switch, Light (2) (Replaces: C3680310) |
|
Immediately | $ 37.23 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 67003897) |
|
$ 100.97 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 67003901) |
|
$ 104.95 | |||||
| 9 | WP67002552 | Bulb, Light (2) (Replaces: 67002552) |
|
Immediately | $ 11.75 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: W10134763) |
|
Immediately | $ 13.21 | ||||
| 11 | 67003900 | Insert, Damper Cover |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (2) (Replaces: 67006602) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 67003899) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation (Replaces: 67006604) |
|
$ 47.76 | |||||
| 15 | WPW10127430 | Control, Damper (incl. Harness) (Replaces: W10127430) |
|
$ 212.11 | |||||
| 16 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| NI | 12973603 | Harness, Control (refrigerator) |
|
- |
