SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts, Optional Parts (not Included)

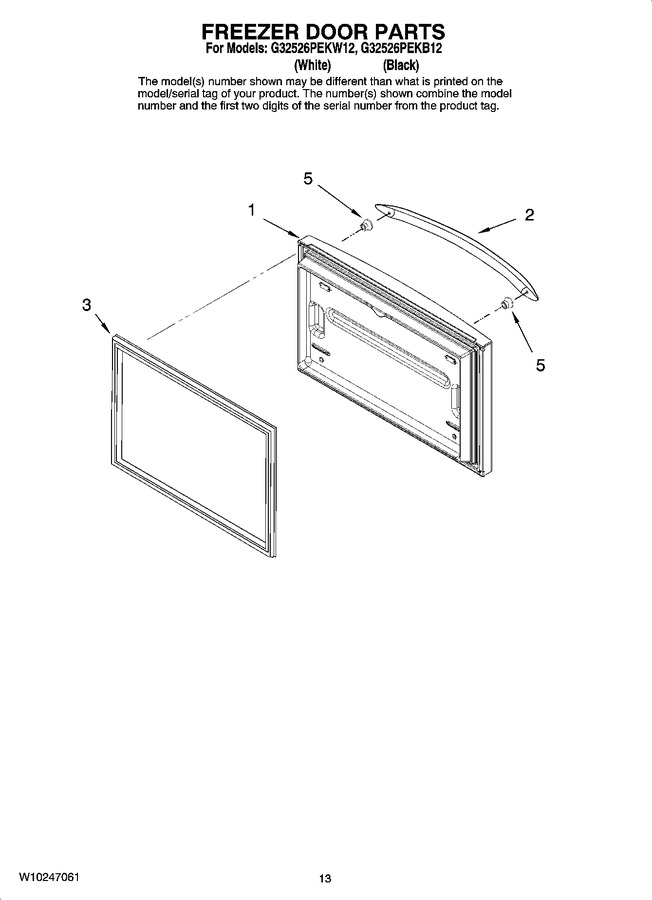

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188317		Freezer Door (white)		Appelez-nous	-
1	13092203BQ		Freezer Door (black)		Appelez-nous	-
2	W10119663		Handle (white)				$ 75.72
2	W10119665		Handle (black)				$ 75.66
3	W10443319		Gasket, Door (white)   (Replaces: W10133249)				$ 281.76
3	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 345.03
5	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.07
NI	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
NI	350942		Primer, White (13 Oz. Spray Can)				$ 89.66
NI	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
NI	350930		Enamel, White (13 Oz. Spray Can)			Immediately	$ 38.21
NI	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
NI	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs. X 3`` X 24``x 48``)				$ 231.56
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	01300019EA		Cleaner, Stnls Steel Magic   (Replaces: 20000008)			Immediately	$ 23.63
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 78.45
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	1117510		Torx Key				$ 5.84
NI	4396418		Complete Ice Maker   (Replaces: 67001740)				$ 340.53
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
NI	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
NI	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
