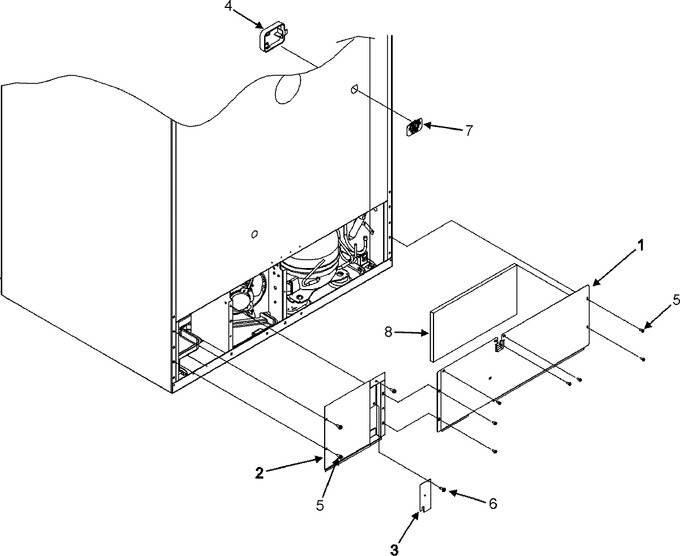

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Freezer Shelves


08 - Handles (g32526peks)


09 - Interior Cabinet & Toe Grille


10 - Left Refrigerator Door


11 - Optional Ice Maker Kit-ic511


12 - Pantry Assembly


13 - Ref Dr Storage & Center Hinges


14 - Refrigerator Shelves


15 - Right Refrigerator Door


16 - Supplemental Information


17 - Wiring Information (series 10)


18 - Wiring Information (series 11)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5759649		Gasket, Mc Back	10	Appelez-nous	-
1	12575101ED		Back, Mach Comp	10	Appelez-nous	-
2	12479807		Cover, Water Valve	11	Appelez-nous	-
2	12479803		Cover, Water Valve	10	Appelez-nous	-
3	12479902		Plate, Cover	11	Appelez-nous	-
3	12479901		Plate, Cover	10	Appelez-nous	-
4	WP67001098		Cover, Fill Tube/plug   (Replaces: 67001098)	10			$ 8.03
5	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
6	681390		Screw   (Replaces: M0251015)	10			$ 13.71
6	WP489128		Screw   (Replaces: 67006662)	11			$ 10.88
7	W11685757		Label, Fill Tube   (Replaces: 67005064)	10			$ 7.06
8	67003796		Fiber, Acoustic	10			$ 19.27
NI	67006664		Cord, Power	11	Appelez-nous	-
NI	67002229		Cord, Power	10	Appelez-nous	-
