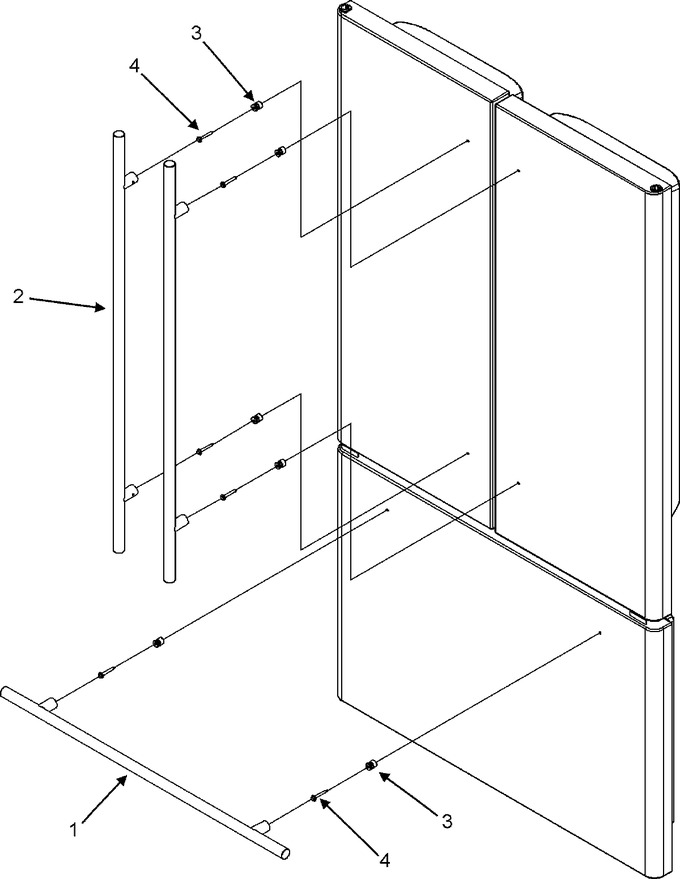

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12850909		Handle Assy., Door (stnls)   (Replaces: 12850909)	11			$ 278.06
1	67003395		Handle Assy., Frz Door (stnls)	10	Appelez-nous	-
2	WP12850910		Handle Assy., Door (stnls)   (Replaces: 12850910)	11			$ 275.89
2	67003394		Handle Assy., Ref Door (stnls)	10	Appelez-nous	-
3	67006109		Mount, Handle	11	Appelez-nous	-
3	67003114		Mount, Handle	10	Appelez-nous	-
4	340184		Screw   (Replaces: 67006679)	11			$ 13.44
4	340184		Screw   (Replaces: 67003115)	10			$ 13.44
