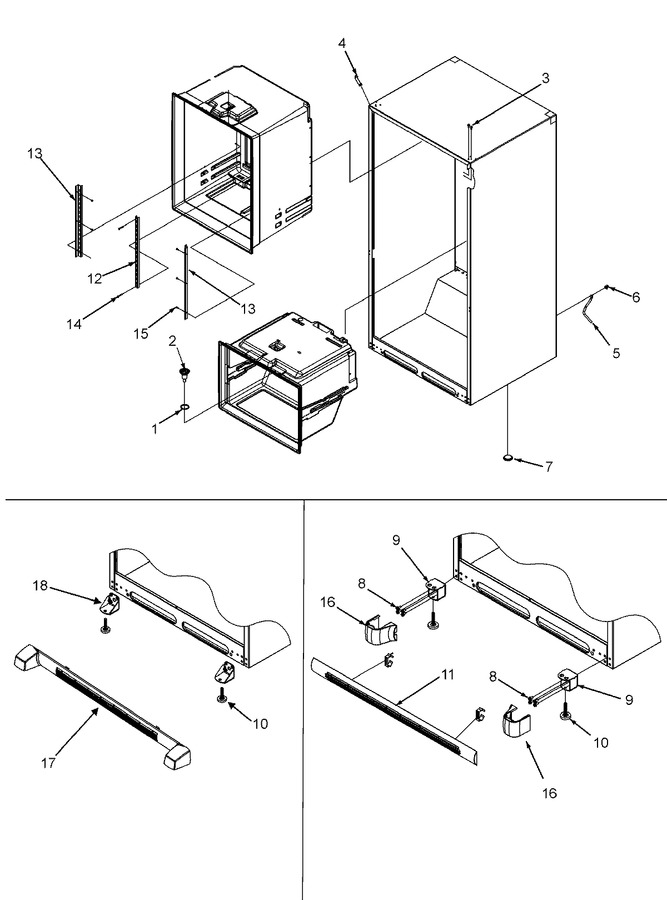

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 10.92
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.41
2	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 49.05
3	A4539607		Pop Rivet	10	Appelez-nous	-
4	67003485		Cover, Corner (blk)	10		Immediately	$ 21.09
5	67001066		Tube, Drain	10			$ 55.82
6	67001067		Clip, Drain Tube	10			$ 9.20
7	A3076901		Plug-button	10			$ 5.70
8	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
9	67001238		Hinge, Bottom E-ct (blk)	10	Appelez-nous	-
10	W11177593		Brake, Foot   (Replaces: 10354001)	10			$ 11.60
11	67002224		Grille Assy., Toe (blk)	10			$ 38.59
11	12627302		Clip, Toe Grille	10			$ 5.84
12	67001073		Ladder, Center	10			$ 54.18
13	67002489		Ladder, L/r Side	10			$ 71.09
14	W10709795		Screw   (Replaces: M0231425)	10			$ 13.13
15	67006425		Screw, Sm   (Replaces: M0238642)	10		Immediately	$ 6.95
16	12561901B		Cover, Lwr Hinge (blk)	10			$ 11.62
17	WPW10534153		Grille, Toe (blk)   (Replaces: 67006375)	11			$ 147.21
18	67006112		Bracket, Foot Cabinet	11	Appelez-nous	-
18	67006491		Screw	11			$ 7.47
