SELECT A DIAGRAM

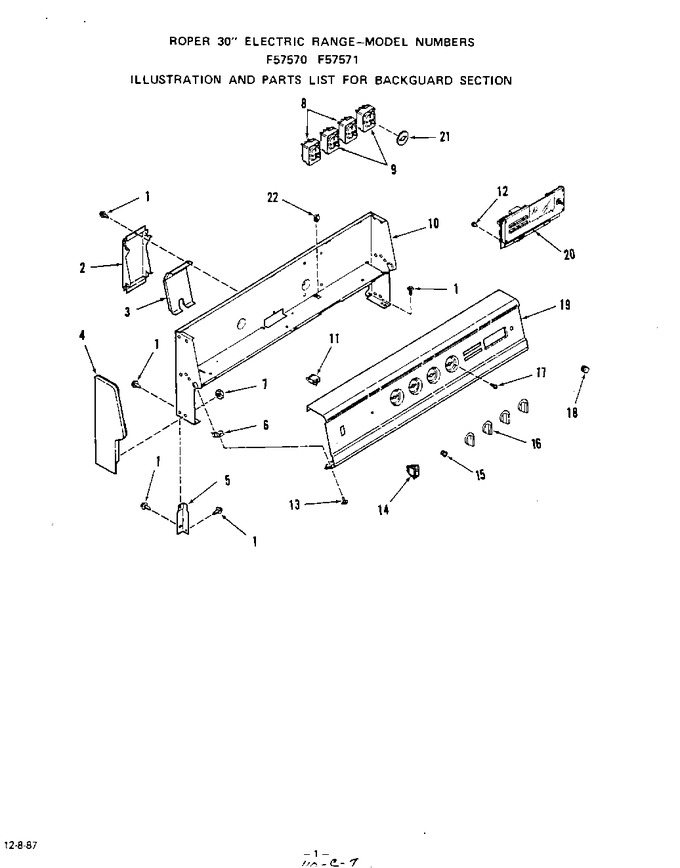

01 - Backguard


02 - Main Top


03 - Body


04 - Oven Door


05 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw		Appelez-nous	-
2	334363		Wire Raceway		Appelez-nous	-
3	334364		Raceway Cover		Appelez-nous	-
4	334161		End Cap (right)		Appelez-nous	-
4	334162		End Cap (left)		Appelez-nous	-
5	334338		Backguard Support (left)		Appelez-nous	-
5	334337		Backguard Support (right)		Appelez-nous	-
6	334375		Backguard Clip		Appelez-nous	-
7	335776		Pal Nut		Appelez-nous	-
8	5500-200		Infinite Switch (lt. Front.rt. Rear)   (Replaces: 334889)			Immediately	$ 60.94
9	5500-200		Infinite Switch (rt. Front Or Lt. Rear)   (Replaces: 334890)			Immediately	$ 60.94
10	338152		Backguard Body		Appelez-nous	-
11	331716		Indicator Light		Appelez-nous	-
12	78153		Screw 6-32x5/16``		Appelez-nous	-
13	321665		Screw		Appelez-nous	-
14	334649		Oven Light Switch		Appelez-nous	-
15	331705		Lens-indicator Light		Appelez-nous	-
16	334562		Infinite Knob		Appelez-nous	-
17	78565		Screw 8-32x3/16``		Appelez-nous	-
18	339197		Clock Knob (f57571)		Appelez-nous	-
18	334045		Clock Knob (f57570)		Appelez-nous	-
19	339141		Control Panel (f57571)		Appelez-nous	-
19	335645		Control Panel (f57570)		Appelez-nous	-
20	W11415783		Clock /oven Control W/lens (f57570)   (Replaces: 337179)			Immediately	$ 19.14
20	339188		Clock /oven Control W/lens (f57571)		Appelez-nous	-
21	338858		Infinite Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
