SELECT A DIAGRAM

01 - Backguard

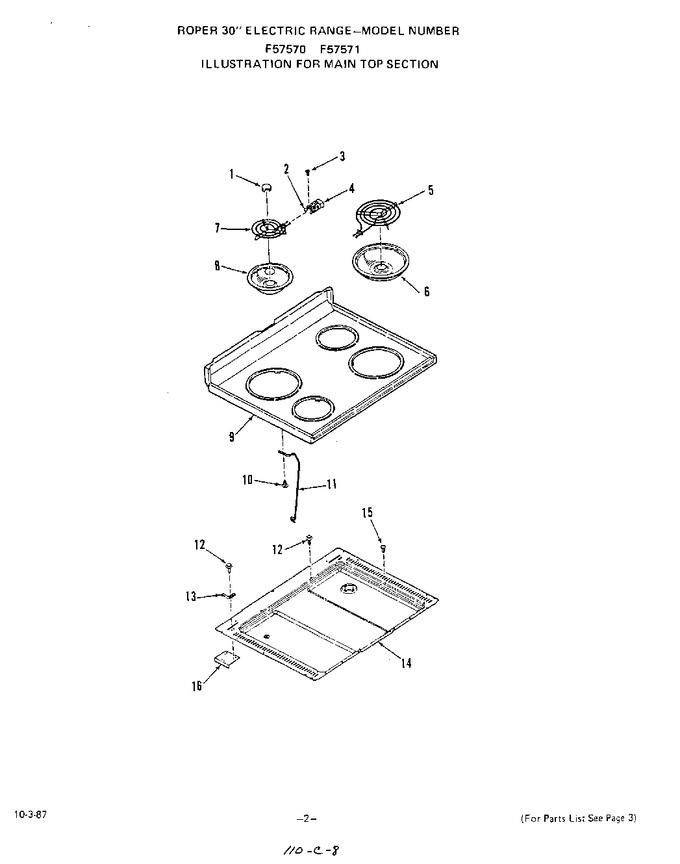

02 - Main Top


03 - Body


04 - Oven Door


05 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion (4 Req)		Appelez-nous	-
2	318872		Terminal Block Clip (4 Req)		Appelez-nous	-
3	299632		Screw 7-32x5/16``		Appelez-nous	-
4	330031		Terminal Block W/wires (4 Req)   (Replaces: 318960)			Immediately	$ 19.92
5	PS26-4BK		8`` Surface Element   (Replaces: 325506)			Immediately	$ 44.95
6	WPW10196405		8`` Burner Bowl   (Replaces: 304969)			Immediately	$ 17.29
7	PS15-4BK		6`` Surface Element   (Replaces: 325510)			Immediately	$ 39.95
8	WPW10196406		6`` Burner Bowl   (Replaces: 296481)			Immediately	$ 13.80
9	332251		Main Top (almond)		Appelez-nous	-
9	332047		Main Top (white)		Appelez-nous	-
10	300000		Screw 6-32 X 5/16``		Appelez-nous	-
11	332284		Support Rod-main Top (2 Req)		Appelez-nous	-
12	327320		Screw 10-16x7/16``		Appelez-nous	-
13	334089		Hinge-main Top (right)		Appelez-nous	-
13	333859		Hinge-main Top (left)		Appelez-nous	-
14	333168		Burner Box Bottom		Appelez-nous	-
15	327320		Screw 10 - 32x1/2``		Appelez-nous	-
16	335823		Reinforcement Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
