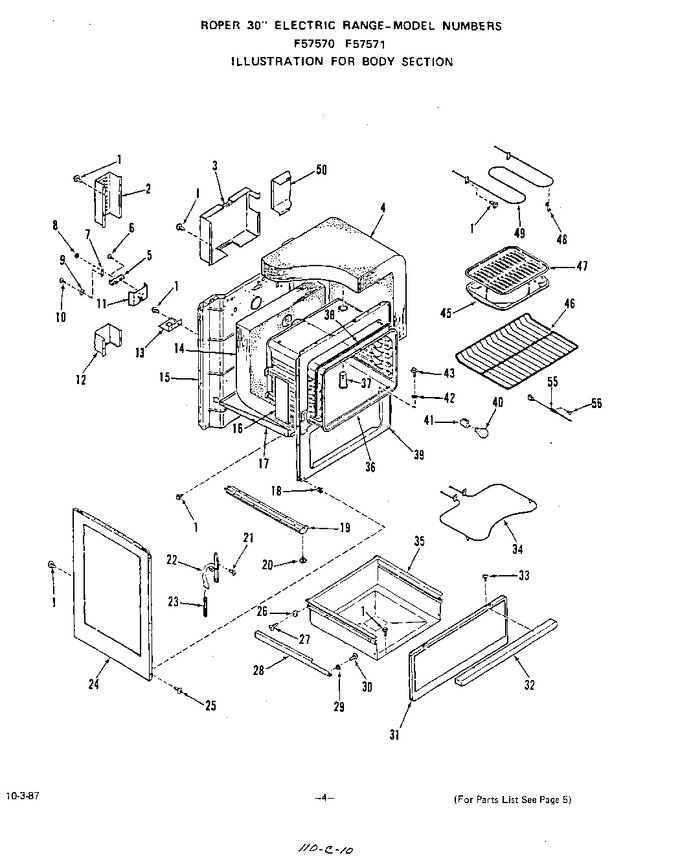

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327235		Wire Shield-upper		Appelez-nous	-
3	335724		Wire Shield		Appelez-nous	-
4	335961		Insulation-oven Wrap (f7907wom Models)		Appelez-nous	-
4	326040		Insulation-oven Wrap (f5907wom Models)		Appelez-nous	-
5	290105		Junction Block		Appelez-nous	-
6	313190		Screw 10-32x1``		Appelez-nous	-
7	327255		Ground Strap		Appelez-nous	-
8	097816		Hex Nut 10-32		Appelez-nous	-
9	299425		Washer		Appelez-nous	-
10	313191		Screw 10-32x7/16``		Appelez-nous	-
11	327242		Insulator-service Cord		Appelez-nous	-
12	327258		Wire Shield-lower		Appelez-nous	-
13	327259		Range Service Mounting Plate		Appelez-nous	-
14	326049		Insulation-oven Back		Appelez-nous	-
15	333749		Main Back		Appelez-nous	-
16	328984		Insulation Retainer-sides (lt. Or Rt.)		Appelez-nous	-
17	312517		Insulation Retainer-lower		Appelez-nous	-
18	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 19.92
19	334811		Base W/levelers-lt. Or Rt.		Appelez-nous	-
20	326052		Leg Levelers (4 Req)		Appelez-nous	-
21	331704		Screw		Appelez-nous	-
22	334633		Hinge-oven Door (left)		Appelez-nous	-
22	334632		Hinge-oven Door (right)		Appelez-nous	-
23	334660		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
24	333303		Body Side (lt. Or Rt.) (white)		Appelez-nous	-
24	333307		Body Side (lt. Or Rt.) (almond)		Appelez-nous	-
25	314124		Screw 8abx5/8``		Appelez-nous	-
26	281913		Slide Block-rear (lt. Or Rt.)		Appelez-nous	-
27	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.84
28	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
29	281914		Side Block-front (lt. Or Rt.)		Appelez-nous	-
30	295849		Screw 10-32x17/32``		Appelez-nous	-
31	332153		Front Panel-storage		Appelez-nous	-
32	332205		Handle		Appelez-nous	-
33	336529		Screw 10-32x1/2``		Appelez-nous	-
34	WG02F05414		Bake Element (240 Volt)   (Replaces: 325883)			Immediately	$ 124.43
34	326364		Bake Element (208 Volt)		Appelez-nous	-
35	296150		Storage Drawer		Appelez-nous	-
36	337043		Oven Body (f5907 Models)		Appelez-nous	-
36	337044		Oven Body (f7907 Models)		Appelez-nous	-
37	333801		Vent Tube		Appelez-nous	-
38	314062		Oven Door Seal		Appelez-nous	-
39	334085		Front Frame		Appelez-nous	-
40	DA96-01243C		Oven Bulb   (Replaces: 111257)				$ 160.00
41	87883		Oven Bulb Holder		Appelez-nous	-
42	106462		Washer		Appelez-nous	-
43	327320		Screw		Appelez-nous	-
45	331592		Broller Pan		Appelez-nous	-
46	326068		Oven Rack		Appelez-nous	-
47	326297		Broiler Pan Grid		Appelez-nous	-
48	334565		Support-broil Element		Appelez-nous	-
49	334369		Broil Element (208 Volt)		Appelez-nous	-
49	334368		Broil Element (240 Volt)		Appelez-nous	-
50	330614		Wire Shield		Appelez-nous	-
55	338242		Sensor		Appelez-nous	-
56	336152		Screw		Appelez-nous	-
