Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4338271 Backguard Appelez-nous -
2 WP681414 Screw 10-16x7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

3 4337135 End Cap (left) Appelez-nous -
3 4337134 End Cap (right) Appelez-nous -
4 4338226 Clip, Backguard Appelez-nous -
5 4337180 Support, Backguard (right) Appelez-nous -
5 4337181 Support, Backguard (left) Appelez-nous -
6 WP308685 Screw, No.10 X1/2   (Replaces: 4335117) In-Stock Immediately $ 7.08

7 4337797 Screw Appelez-nous -
8 4323476 Screw, No.6-32 X 5/16 Appelez-nous -
9 4337923 Clock-w/lens Appelez-nous -
10 WP4314961 Switch, Light   (Replaces: 4337275) Special Order $ 84.56

11 4337852 Panel-lower Front Appelez-nous -
12 4337111 Knob, Clock Appelez-nous -
13 WP9750343 Lens, Light   (Replaces: 4336632) In-Stock Immediately $ 5.40

14 4336633 Light, Indicator Appelez-nous -
15 W10850756 Screw No.10-32x3/8   (Replaces: 4323777) Special Order $ 7.38

16 4337625 Cleat Appelez-nous -
17 WP308499 Nut, Pal   (Replaces: 4337577) Special Order $ 6.57

18 4337559 Panel, Control Appelez-nous -
4337926 Xlens, Clock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

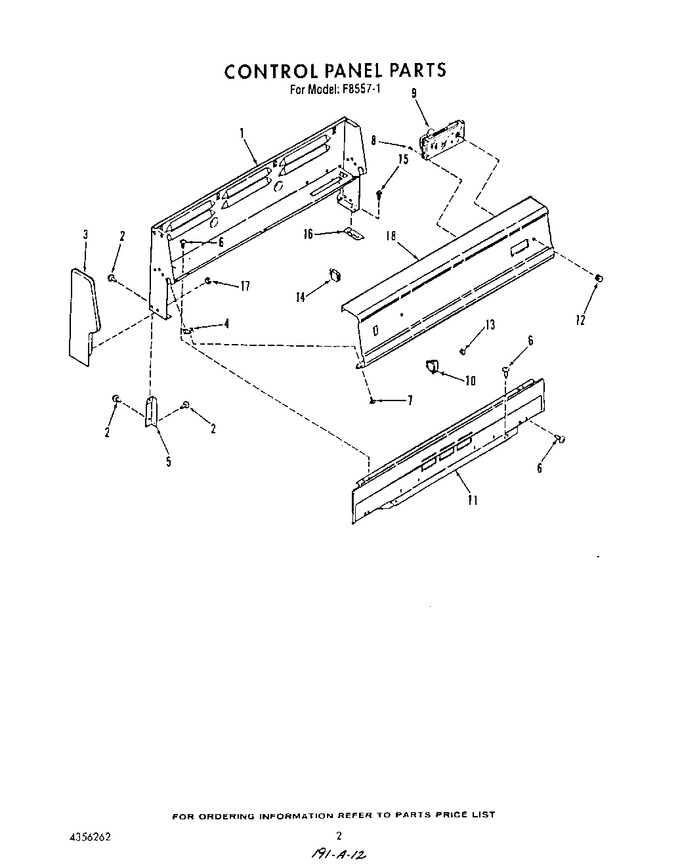

Diagram for F8557^1
