Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489128 Screw No.8-32x3/8   (Replaces: 4323625) Special Order $ 10.26

2 4331307 Bracket, Ignitor Appelez-nous -
3 4354925 Electrode (left) Appelez-nous -
3 4337231 Electrode (right) Appelez-nous -
4 4336922 Rear Burner, Lt/rt. (inc`s No.8) Appelez-nous -
5 4336921 Front Burner, Lt/rt (inc`s No.8) Appelez-nous -
6 4338182 Screw Appelez-nous -
7 4337013 Support, Burner Appelez-nous -
8 4335197 Air Shutter Appelez-nous -
9 4334271 Regulator-pressure Appelez-nous -
10 WP681414 Screw, No.10-16 X 7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

11 4331097 Screw (for 19) Appelez-nous -
12 4324632 Tubing 3/8`` Appelez-nous -
13 4324278 Nut, Inverted 3/8 Appelez-nous -
14 4335080 Valve, Shut Off Appelez-nous -
15 4331665 Seal, (for No.14 & 19) Appelez-nous -
16 4336920 Manifold Pipe Appelez-nous -
17 4331164 Seal (for 11) Appelez-nous -
18 4335613 Thermostat Appelez-nous -
19 4336714 Valve, Gas (inc`s No.15) Appelez-nous -
20 4331311 Switch, Gas Valve Appelez-nous -
21 4336167 Shield-thermostat Appelez-nous -
22 4323479 Screw No.8-32 X 3/16 Appelez-nous -
23 4342637 Screw, No.8-32 X 3/8 Appelez-nous -
24 4337581 Clip Appelez-nous -
25 WP488130 Nut No.8-32   (Replaces: 4325189) Special Order $ 6.59


    View Diagram in Separate Window     Print Icon   Print Part List

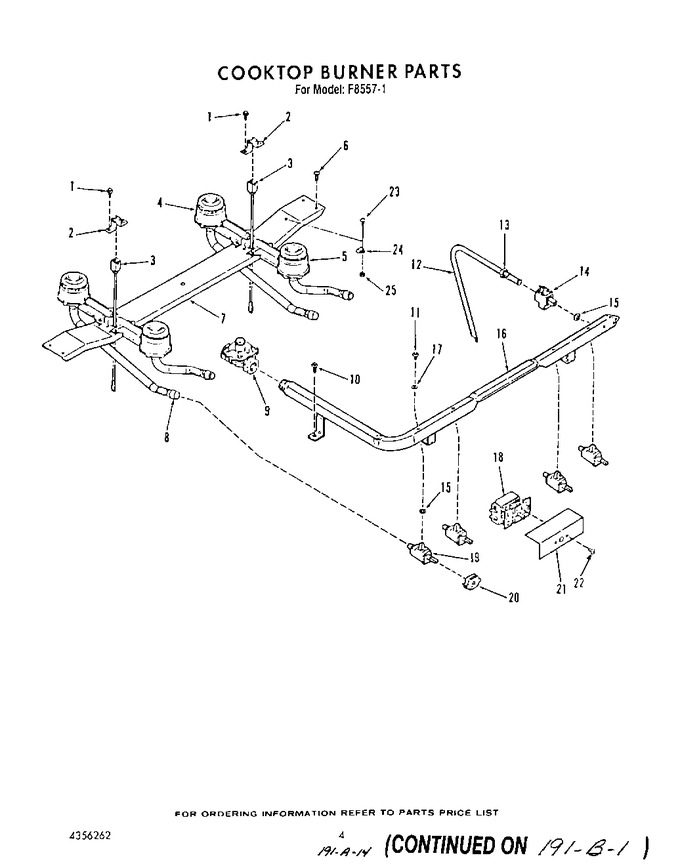

Diagram for F8557^1
